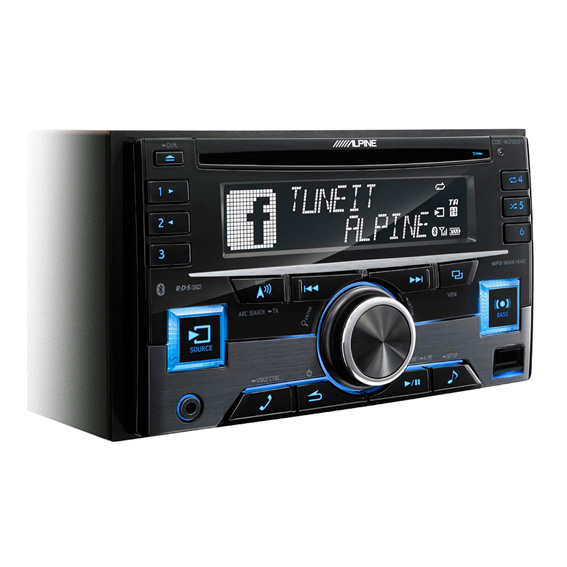

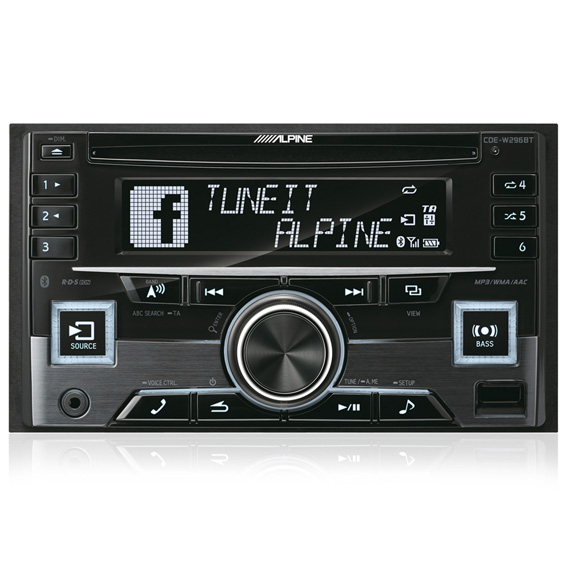

Alpine CDE-W296BT DEMO!
€200,00
The Alpine CDE-W296BT combines all the cool new features and functions such as Alpine TuneIt App compatibility for iPhone and Android based phones, allowing full sound tuning and sharing via your phone, as well as new Facebook message alerts.
It’s Steering Wheel Remote Control Ready for a perfect install in almost any vehicle. If your car is equipped with a start-stop engine, this Head Unit is even more interesting for you, since it will keep playing when your engine stops at a crossroad.
Wilt u meer informatie over dit product? neem dan contact met ons op! U kunt ons bellen op 079-360 88 98 of mail naar Info@dnbinbouwstation.nl voor het maken van een afspraak.
Uitverkocht
Alpine CDE-W296BT – 2-Din Receiver met Bluethooth
The Alpine CDE-W296BT combines all the cool new features and functions such as Alpine TuneIt App compatibility for iPhone and Android based phones, allowing full sound tuning and sharing via your phone, as well as new Facebook message alerts.
It’s Steering Wheel Remote Control Ready for a perfect install in almost any vehicle. If your car is equipped with a start-stop engine, this Head Unit is even more interesting for you, since it will keep playing when your engine stops at a crossroad.
It also features a 3-way crossover and you can even adjust the button and display illumination colour separately with a stunning 150.000 colour variations.
Product Info
Variable Illumination Gives You a World of Colour
With Variable Illumination, you’re no longer limited to a choice of just a few colours. You can actually browse through a range of more than 150,000 colours to select exactly the tone to match or complement your dashboard illumination. Many preset colours are also available. Display and button illumination are independently selectable. You can choose to match your car manufacturers style, e.g. VW red buttons and a blue display.
3-way X-OVER
This unit is equipped with an active crossover. The crossover limits the frequencies delivered to the outputs. Each channel is controlled independently. Thus, each speaker pair can be driven by the frequencies for which they have been optimally designed.
The crossover adjusts the HPF (high pass filter) or LPF (low pass filter) of each band, and also the slope (how fast the filter rolls off the highs or lows). Adjustments should be made according to the reproduction characteristics of the speakers. Depending on the speakers, a passive network may not be necessary. If you are unsure about this point, please consult your authorized Alpine dealer.
Tune Your Sound, Check Your Facebook
Download the Alpine TuneIt App, then connect your iPhone via USB or Android based smartphone via Bluetooth. Now you’re ready to use your phone as a handy interface to achieve exactly the sound you want in your car. If you’re on Facebook, the app will also notify you of new messages on both your phone and the head unit. For more details, see the Alpine TuneIt App description in the Apps product category.
BASS ENGINE SQ
The BASS button next to the central control knob takes you directly to the advanced bass level adjustment function. As you choose one of the six levels, it automatically adjusts frequency cut-off, Q factor and subwoofer level for optimum sound quality and tonal balance.
Built-in Bluetooth® Has Many Advantages
Bluetooth® comes built in, so you can enjoy hands-free phone operation and a wide range of convenient functions for superior in-car phone use. These include the ability to hold and switch incoming calls, phonebook functions like auto updating and easy ABC search, and easier control of music search and playback functions. When an iPhone is connected to the USB port for the first time, the unit will automatically start the inital Bluetooth setup.
Hear the Music You Love, from Many Different Apps!
Alpine takes head unit/iPhone integration a step further with App Direct. Connect your iPhone via USB and App Direct will let you listen to sound from many apps through your system speakers. Select music or talk from Internet Radio, streaming services, whatever your favourite apps are. You get full control from the iPhone’s touch screen and the iPhone stays fully operational.
Full Enjoyment of iPods and iPhones
The CDE-W296BT provides a high speed USB connection to let you enjoy the functions of your iPod or iPhone. Along with superior sound quality and easy operation, you also get quick music search via song, artist, album, and other choices.
Siri Voice Control
Use the voice control key to activate Siri on your iPhone 4S / iPhone 5 / iPhone 6 and 6 Plus to control the music playback and place calls. This works also for Android phones with voice control function.
Eigenschappen Specificaties
FEATURES
Tuner
- Memory Presets: vooraf ingestelde zenders (FM: 18 MW: 6, LW: 6)
- Geheugen: Automatisch geheugen
- Seek Mode: Local / DX Selection
RDS
- RDS-functies: TA, TP, AF, CT, PTY, EON, Radio Text +
- PTY (Programme Type) Beeldscherm:
BLUETOOTH®
- Ingebouwde Bluetooth®-module
- Handsfree bellen: HFP (Hands Free Profile)
- Streaming muziek: A2DP (Advanced Audio Distribution Profile) Compatibel
- Streaming Music Control: AVRCP (Audio / Video Remote Control Profile) Ver.1.4 Compatibel
- BT Plus Geavanceerde BLUETOOTH-technologie
- Aansluiting: SSP (Secure Simple Pairing) Ondersteunde
- Telefoonboek: Telefoonboek Synchronisatie
- Zoek Telefoonboek: 3 Letters Zoeken
- Snelkoppeling Kiezen: 6 Presets Geheugen
- Telefoon Inschrijving: tot 5 telefoons kunnen worden geregistreerd
- Meerdere Telefoonnummer Registratie: 5 Telefoonnummer Registratie Mogelijkheid
- Telefoonboek Label Weergave: Telefoon Type Display (Algemeen, Mobiel, Thuis, Kantoor, Overige)
- Voice Dial Operation: Voice Control voor iPhone Ondersteunde
- Automatisch beantwoorden
- Wisselgesprek
- Call History Display: Telefoonboek Call / Gekozen oproep / Ontvangen oproepen / Gemiste oproep
- Speech Volume Level Adjustment: Instelbaar voor uitgaande en inkomende volume
- Hands-Free Phone Sound Omgeving: 5 Type Selectie
- Indicator voor signaalsterkte
- Batterij Niveau Indicator
- Output Luidspreker kiezen
- Menu Taal Selectie: Engels, Duits, Frans, Italiaans, Spaans, Nederlands, Russisch
- Firmware te updaten
- Microfoon inbegrepen
Gemaakt voor iPod® / iPhone®
- Compatibiliteit voor iPod / iPhone: Made for iPod touch 5G / 4G / 3G / 2G / 1G, iPod nano 7G / 6G / 5G / 4G / 3G, iPod classic 160GB / 120GB / 80GB, iPhone 6 en 6 Plus, iPhone 5S, iPhone 5C, iPhone 5, iPhone 4S, iPhone 4, iPhone 3GS, iPhone 3G en iPhone
- Aansluiting: KCU-445i Vereist (voor iPods / iPhones met 30-pins connector)
- Beschikbare Selecties: Playlist, Artist, Album, Song, Podcast, Genre, Composer, Audiobook, Genius-mix
- Zoeken op alfabet
- Percentage Zoeken
- App Direct Mode
- Direct Omhoog / Omlaag: Playlist, artiest, album, genre, componist, Episode omhoog / omlaag
- M.I.X. (Shuffle) Play: Song, Album, Alle
- Herhaal één
- Opladen van de batterij
- iPhone: Automatische initiële Bluetooth setup via USB
Alpine TuneIt App
- Alpine TuneIt App Ready met iPhone en Android
- Sound functie-instellingen
- Geluid instellen Gegevens uploaden naar Alpine Cloud Server (Data Sharing)
- Facebook Notification
- Geschikt voor iPhone en Android Smartphones: Beschikbaar op Apple App Store en Google Play Store
Disc-speler
- Disc Type: CD-speler
- Disc Playback Type: CD, CD-R / RW
- Muziek afspelen: CDDA, MP3, WMA, AAC Playback
- M.I.X. Willekeurige weergave: Track / Folder, Alle
- Herhaling
- Playback Control: Play / Pause / vooruit / achteruit
- CD Text Display: Disc / Track-display
- CD tekst Naam zoeken
- Percentage Zoeken
- DAC: 24 bit DAC
- Zero data Mute
- Digital Servo
USB Media Connection
- Voorste USB-aansluiting
- Muziek afspelen: MP3, WMA, AAC-bestanden afspelen
- USB-klasse: Mass Storage Class
- File / mapnaam
- Map omhoog / omlaag
- M.I.X. Willekeurige weergave: map, Alle
- Herhaling
Geluid Tuning
- Subwoofer niveau aanpassing
- Bass Engine
- BASS ENGINE SQ
- Subwoofer Fase Select: 0 ° / 180 °
- Subwoofer System Select
- Standaard Equalizer setup
- Equalizer: Flat, Pops, Rock, Nieuws, Jazz, Elektro Dance, Hip Hop, Easy Listening, Country en klassieke
- 9-bands parametrische equalizer
- Digitale tijdcorrectie
- Digital Crossover Omgeving: 2Way / 3Way System
- Toepassing Volume Level Setting
- MediaXpander
- Vermogen IC Management System
- Alpine TuneIt App klaar
Algemeen
- Uitgangsvermogen: 4 x 50W High Power Amplifier met Advanced Power IC
- Weergave: 14 Segmenten RGB LCD scherm, 2 Lijnen
- Controle Type: Rotary Encoder Knop
- Gezicht Kleur: Zwart
- Verlichting Buttons: Variabele RGB Verlichting Knoppen
- Geef Kleur Omgeving: Variabele RGB Color Display
- Display en toetsverlichting onafhankelijk selecteerbaar
- High Grade Audiophile Ontwerp
- 3 pre-outs (2V, voor + achter + subwoofer)
- DAC: 24-bit DAC
- AUX-In: AUX-ingang (3,5 mm mini-jack)
- Steering Wheel Remote Control Ready: Directe verbinding
- Mute: -20dB Mute (Alleen afstandsbediening)
- Remote Control Ready
- Menu Taal: Engels, Duits, Frans, Italiaans, Spaans, Nederlands, Russisch
- Klok
- Firmware te updaten: via USB
- Afneembare DIN Trim Plate
- Dimmer
- Elektrische antenne
- Remote Turn-On
- Start-Stop Engine onaangetast
- Voice Control (SIRI activering)
Uitgangsvermogen
- Max uitgangsvermogen: 4 x 50W
FM-tuner
- Tuning Range: 87,5-108,0 MHz
- Bruikbare gevoeligheid mono: 0,7 mV
- Selectie alternatief kanaal: 80 dB
- Signaal-ruisverhouding: 65 dB
- Stereo Scheiding: 35 dB
- Capture Ratio: 2 dB
MW Tuner
- Tuning Range: 531 – 1.602 kHz
- Bruikbare gevoeligheid (IEC-standaard): 25,1 mV / 28 dB
LW-zenders
- Tuning Range: 153k – 281k Hz
- Bruikbare gevoeligheid (IEC-standaard): 31,6 mV / 30 dB
Disc-speler
- Frequentiebereik: 5 – 20k Hz (± 1 dB)
- Totale harmonische vervorming (bij 1 kHz): 0,008%
- Dynamic Range (bij 1 kHz): 95 dB
- Signaal-ruisverhouding: 105 dB
- Channel Separation (bij 1 kHz): 85 dB
- Wow & Flutter (% WRMS): B.M.L.
USB
- USB Vereisten: USB 1.1 / 2.0
- Max. Stroomverbruik: 1000 mA
- USB-klasse: Mass Storage Class
- Bestandssysteem: FAT 12/16/32
- MP3-decodering: MPEG Audio Layer-3
- WMA-decodering: Windows Media ™ Audio
- AAC-decodering: AAC-LC-formaat ” .m4a ” Bestand
- Aantal kanalen: 2-kanaals (stereo)
- Frequentiebereik: 5 – 20k Hz (± 1 dB) * Kan afwijken, afhankelijk van de encoding software en bitsnelheid.
- Totale harmonische vervorming (bij 1 kHz): 0,008%
- Dynamic Range (bij 1 kHz): 95 dB
- Signaal-ruisverhouding: 105 dB
- Channel Separation (bij 1 kHz): 85 dB
BLUETOOTH®
- BLUETOOTH® Versie: Bluetooth v2.1 + EDR
- Output Power: 4 dBm Max. (Power Class 2)
- HFP (Hands Free Profile)
- HSP (Head Set Profile)
- A2DP: Advanced Audio Distribution Profile
- AVRCP: Audio / Video Remote Control Profile v1.4
- OPP (Object Push Profile)
- PBAP (Phone Book Access Profile)
- SPP (Secure Simple Pairing)
Geluid Tuning
- Subwoofer niveau aanpassing: 0 tot 15
- Subwoofer Fase Omgeving: 0 ° of 180 °
- BASS ENGINE SQ: Niveau 0-6
- Bass Level Bereik: ± 9,1 dB bij 100 Hz
- Treble Level Bereik: ± 9,1 dB bij 10 kHz
- Parametrische equalizer (Band 1): 20-100 Hz
- Parametrische equalizer (Band 2): 63-315 Hz
- Parametrische equalizer (Band 3): 125-500 Hz
- Parametrische equalizer (Band 4): 250 – 1k Hz
- Parametrische equalizer (Band 5): 500 – 2k Hz
- Parametrische equalizer (Band 6): 1k – 4k Hz
- Parametrische equalizer (Band 7): 2k – 7.2K Hz
- Parametrische equalizer (Band 8): 5.8k – 12k Hz
- Parametrische equalizer (Band 9): 9k – 20k Hz
- Parametrische equalizer (Gain): -7 tot 7
- Parametrische equalizer (bandbreedte): 3, 4, 5
- 2way Crossove Mode: grensfrequentie 20-200Hz, Helling Flat / 6/12/18/24 dB / oct, Level -12 tot 0 dB
- 3way Crossover Mode: grensfrequentie Low / Mid Laag 20-800Hz Mid High 20-20kHz High 1k-20kHz, Helling Flat / 6/12 dB / oct, Level -12 tot 0 dB
- Toepassing Volume Niveau Omgeving: ± 14 dB
Algemeen
- Voeding: 14,4 V.DC (11-16V toegestane)
- Pre Uitgangsspanning (Voordat Clipping): 2V / 10k ohm
- Aux-in: 1.4V / 10k ohm
- Temperatuur (° C): 60 ° C (140 ° F) tot -10 ° C (14 ° F)
- Maximale Montage Hoek: 35 °
- Gewicht: 1.85 kg
Afmeting
- Din Grootte: 2 DIN
- Chassis Afmetingen (B x H x D) mm: 178 x 100 x 161,7 mm
- Neusstuk Afmetingen (B x H x D) mm: 169,8 x 95,8 x 26,2 mm
