Alpine R-S69
€229,00
R-Series: Powerful Bass and High Clarity
Peak Power: 300 Watts
RMS Power: 100 Watts
Frequency Response: 60 Hz – 29 kHz
Wilt u meer informatie over dit product? neem dan contact met ons op! U kunt ons bellen op 079-360 88 98 of mail naar Info@dnbinbouwstation.nl voor het maken van een afspraak.
1 op voorraad

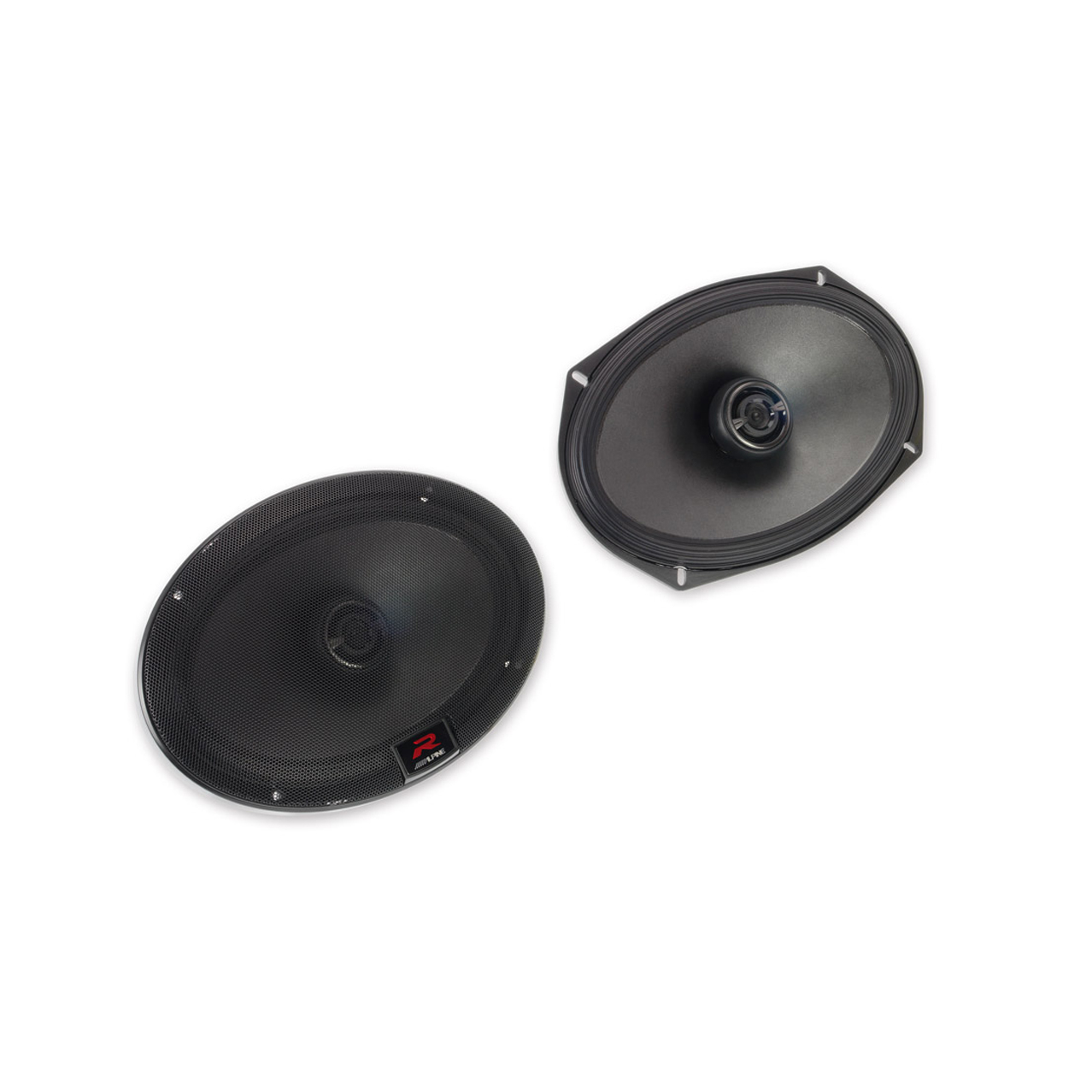

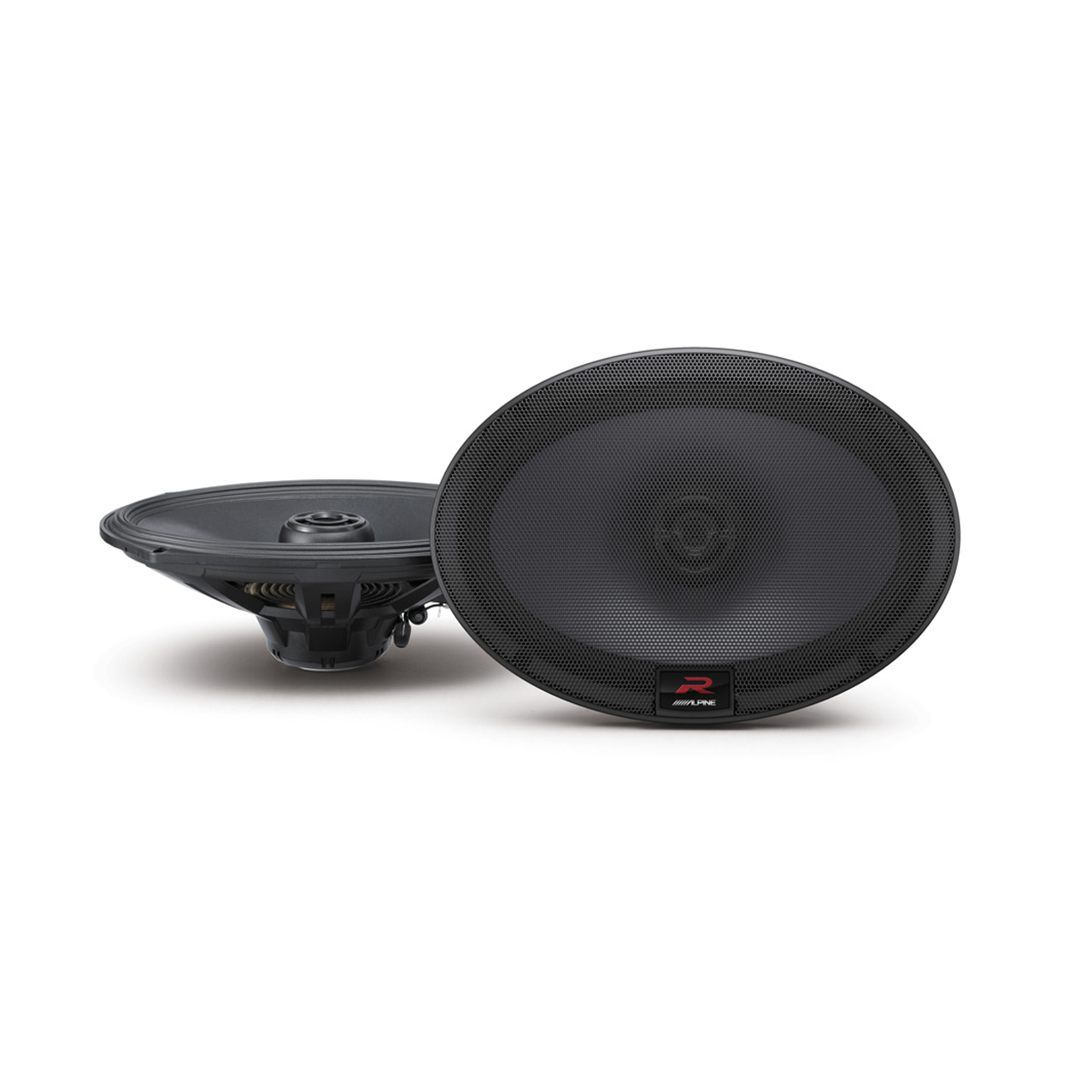

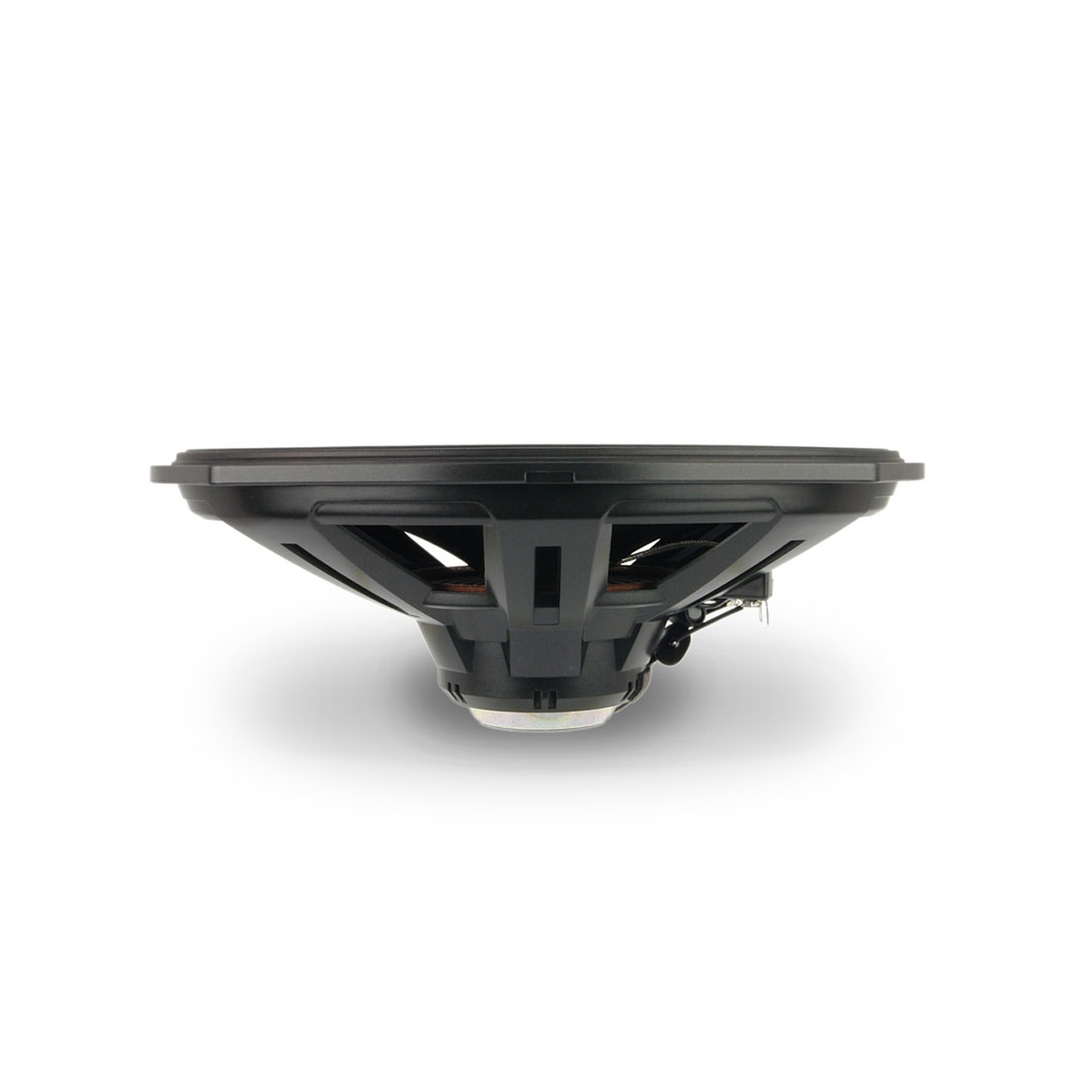

Alpine R-S69 – 6×9″ (16cm x 24cm) COAXIAL 2-WAY R-SERIES SPEAKER
Meet the latest generation of R-Series speakers: engineered to deliver high bass power while maintaining extreme sound clarity. The R-Series speakers include both component and coaxial models, both of which are highly efficient and provide good installability in a wide range of vehicles.
Peak Power: 300 Watts
RMS Power: 100 Watts
Frequency Response: 60 Hz – 29 kHz
Product Info
HAMR Surround
The High Amplitude Multi-Roll (HAMR) surround allows a maxi- mum, linear cone excursion for high SPL, while maintaining full control over the diaphragm at any excursion stage for high sound clarity.
Great Installability
Alpine uses high-power neodymium magnets for the new R-Series speakers. This means the magnet can be much smaller compared to traditional speaker designs, allowing for a much lower mounting depth and overall space requirement inside the car door.
Outstanding Clarity
The all-new voice coil is made of Aluminium, compared to the regular copper wire coils. The benefit is higher clarity especially in the mid-high frequency area.
Swivel Tweeter
Both component and coaxial models feature a ring tweeter that swivels to improve off-axis response in less-than-ideal locations. You can aim it by hand for best imaging and staging at your listening position. The component type tweeter (R-S65C only) can be installed in flush-mount or on-dash configuration – all installation adapters are included.
Included Mesh Grill
We included a metal mesh grill to protect the woofer in open installations.
Included Trim-Rings
To allow easy installation in a wide range of vehicles, we included several trim rings and a 6 x 8” adapter.
Eigenschappen Specificaties
Features
Tweeter
- 1′′ (2.5cm) Ring Radiator Tweeter
- Large Aluminium Voice Coil
- Neodymium Magnet
- Swivel Application
- Flush Mount, Surface Mount Application
Woofer
- Hybrid Multi Layer Cone
- Linear Drive Technology
- HAMR Surround
- Large Aluminium Voice Coil
- Aluminium Square Wire
- Ultra High Density Neodymium Magnet
- DX Ring
- Shallow Mounting Design
- Mounting Adapter Kit Included
SPECIFICATIONS
Power Handling
- Peak Power: 300 Watts
- RMS Power: 100 Watts
Dimensions
- Woofer Mounting Diameter: 148 x 223 mm
- Woofer Mounting Depth: 75 mm
General
- Frequency Response: 60 Hz – 29 kHz
- Imp Impedance: 4 Ohms
- Sensitivity: 88 dB/W (1m)
