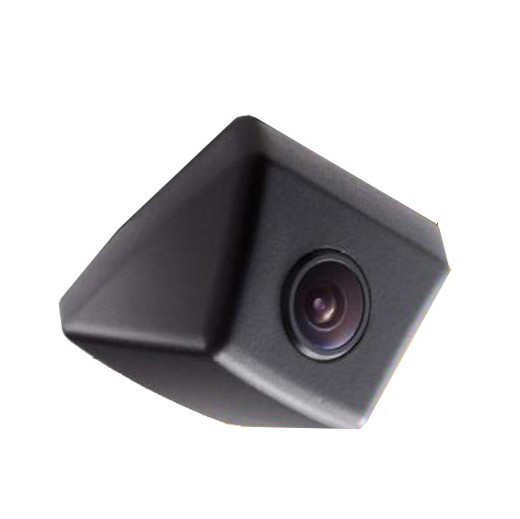

The inconspicuous, small camera with ASC 340CS lens can easily be installed. The camera is completely made out of metal and waterproof according to the IP66 certification level.

This high-end quality camera makes use of the best available lens today, namely:

Features:
– 1/4″ASX 340CS Sensor
– F2.0 World best lens
– Specially designed for universal usage

– Vertical mounting possible

– Front & rear installation possible
– Lens angle is 170?D; 130?H; 88?V F=2.0

– Guide lines (removeable)
– Waterproof according to IP66 certification levelCompatible with:
– Universal usage front

– Universal usage rear

– Universal usage vertical mounting

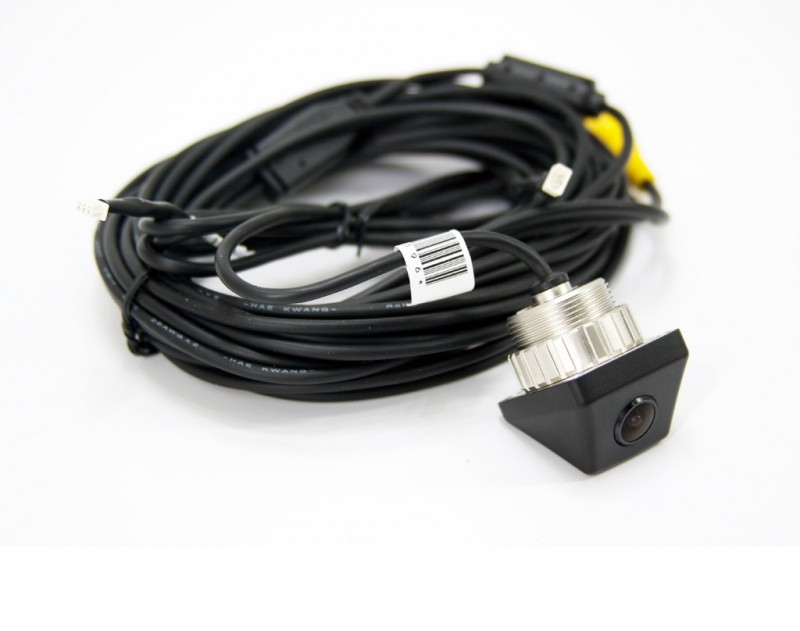

– Super micro reversing camera NTSC

– Video extension cable 5 meter (RCA)

– Installation manual

– Invoice

– Warranty

– With a multimedia interface or video interface it is possible to connect the camera with the original navigation system, ask for the possibilities.

-IP rating: IP66 (Weatherproof)

-Image Sensors : Color 1/4″ ASC 340CS F2.0

-TV System: NTSC

-Sesnor clear pixel: 728H x 560V

-Horizontal Resolution: 480 TV Line

-Video output: 1Vp-p,75Ohm

-Auto Gain Controle: Automatic

-Back Light Compensation: Automatic

-Signal to noise ratio (S/N): 46dB

-Lens Angle: 170 °(D), 130 °(H), 88 °(V), 75ohm

-Power consumption: 235 mW

-Power Supply: DC12V (6V – 18V)

-Operating Temperature: -30 C to +70 C

-Connection: Cinch

-Image: Mirror & Non Mirror

-Material: Zinc

-Weight: Approx 75g (camera cable included)

– Length:  30mm

– Width:  26mm

– Height: 15mm
