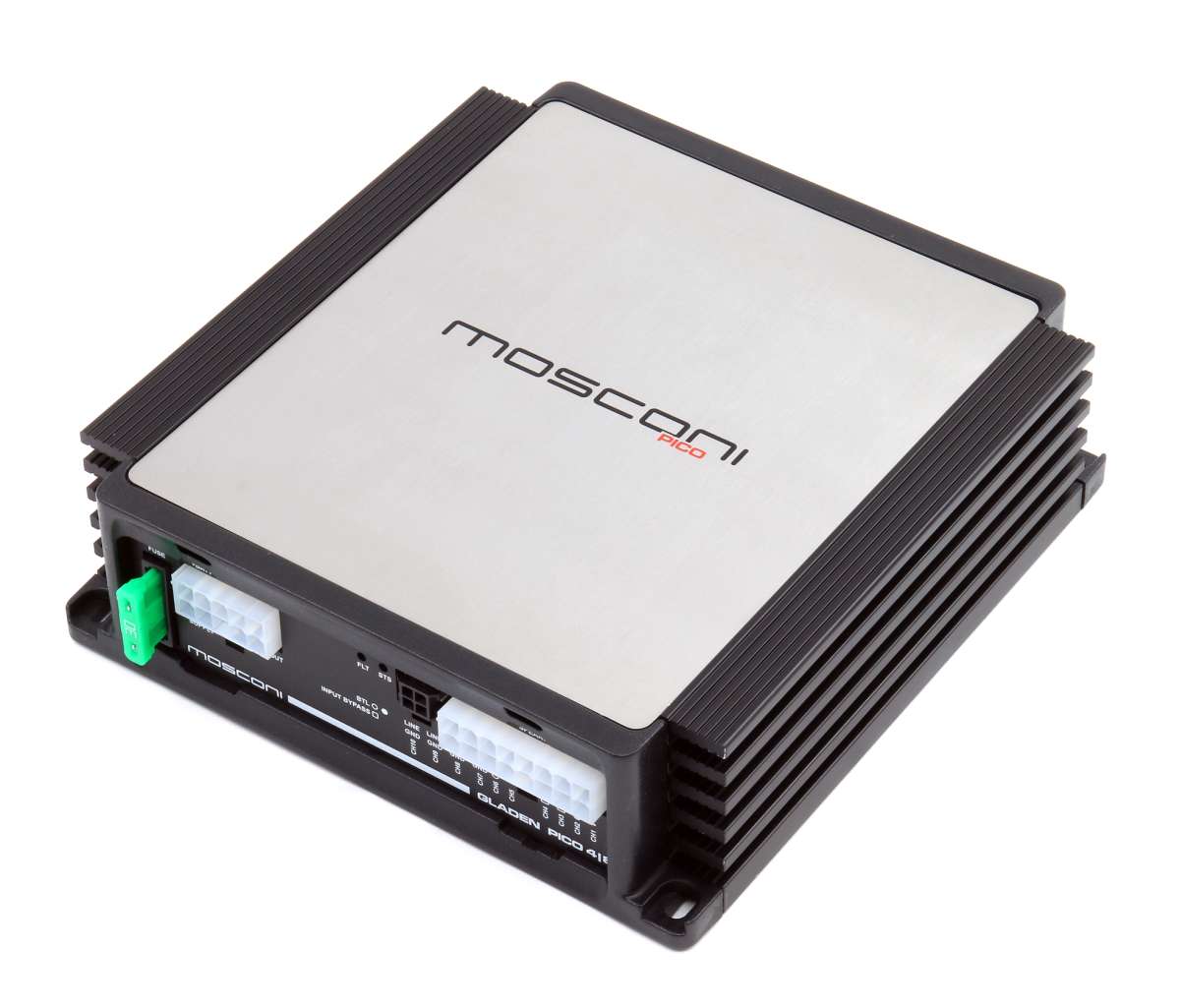

Mosconi Pico 4|8 DSP – 4-kanaals versterker met DSP

Special features
Signal controlled power supply

In contrast to Class G/H, the power supply is only switched on when required (high levels) and regulated depending on the power requirement. Benefit: The quiescent current is between 250mA and 450mA (depending on the speaker wiring) -> Particularly interesting for electromobility and mobile homes

Converterless high-speed PWM power amplifiers

Highly efficient PWM output stages with currently the fastest carrier frequency worldwide (>2MHz), enables HiRes audio transmission and the extremely small size. The modulation takes place without a DAC directly from the 96kHz TDM signal of the DSP, which means that the background noise is close to zero and THD+N ~0.02% / 1W.

Hardware
Input page

4x analog inputs high-level up to 30V + 2x high-level or RCA (switchable), another 4 high-level via optional plug-in card
1x digital input SP-Dif optical
1x Bluetooth port with SP-Dif – TTL (8kHz – 96kHz, e.g. for Mos_BTS Bluetooth streaming module)
1x Bluetooth extended digital audio port (BT+) (flexible 8kHz – 384kHz synchronous digital input for audio sources with 2 – 16 channels, direct DSP access without jitter, e.g. for MOS BTS96k BT streaming module or extended analog inputs)
DSP part

294.912MHz, 32-bit audio port, 64-bit core. Double Precision 56Bit filter calculation. 3072 SIMD instructions per sample at 96 kHz. ASRCs from 1:8 up to 7.75:1 ratio and 139 dB DNR.
Outputs

4-channel RCA (processed)
Remote out
Software

9 band parametric input EQ (de-equalizing) 6x input delay 0 – 3ms / 0.01ms (de-delay)
Flexible mixer for signal routing (side split, can add and subtract, 10 inputs on 4×2 output groups)
3x 30 band group EQ (parametric, relative phase remains stable)
10 band output filter HighPass / LowPass / HighShelf / LowShelf / Notch / Allpass 1st + 2nd order / speaker EQ)
8x speaker delay 0 – 12ms, 0.01ms
8x Speaker Phase switch.
Optional accessories:

Remote controls RCD, RC-Mini, RTC-Hub
RC-CAN (CAN bus)
Bluetooth modules for app control, audio streaming, USB PC programming
RCA harness EXT.4HLin for 4 analog inputs
Connection cable EXT.4LINK to other PICOs
BT+ extension 4 analog inputs
BT+ extension audio streaming 24/96 “Direct In” via I^2S
BT+ extension USB programming module
Plug’n’play wiring harnesses to the vehicle
