Alpine iLX-F115D
€1.149,00
XXL 11-inch media-ontvanger met 1 DIN-chassis, met DAB+, Apple CarPlay en Android Auto-compatibiliteit
De iLX-F115D Alpine Halo 11 is de tweede generatie van Alpine’s wereldberoemde Halo-productlijn, met een gigantisch XXL 11-inch WXGA-touchscreen met hoge resolutie en is compatibel met vrijwel elk voertuig met 1DIN- of 2DIN-installatiedock. Deze Head Unit is met name geschikt voor bestelwagens, pick-up trucks, campers of elk ander voertuig met een groot dashboard – of gewoon voor elke gebruiker die op zoek is naar maximale schermgrootte. Het superslanke display lijkt eenvoudig over je dashboard te zweven en kan op verschillende manieren worden aangepast voor de beste positie.
Geniet van draadloze Apple CarPlay en Android Auto (bekabelde) compatibiliteit, DAB+ digitale radio, USB-videoweergave, Hi-Res audioweergave, Bluetooth handsfree en audiostreaming en nog veel meer met deze geweldige head-unit.
Breng uitzonderlijk goede geluidskwaliteit in uw voertuig: de Alpine Halo 11 is ‘s werelds eerste head-unit met een ingebouwde klasse-D-versterker en heeft een breed scala aan professionele geluidsafstemmingsfuncties, zoals 2-weg X-overs, een parametrische EQ, digitale tijdcorrectie en nog veel meer.
2 op voorraad (kan nabesteld worden)
Large – Larger – Alpine Halo 11
If you are looking for maximum screen size in your dashboard, the Alpine Halo 11 (iLX-F115D) is for you. Its 11-inch HD screen is especially suitable for any vehicle with a large dashboard, such as motorhomes, pick-up trucks, vans, camping-busses, etc, but can of course also used in any other vehicle with a 1DIN or 2DIN radio dock and brings the very latest entertainment features and formats to your ride.
11-inch XXL HD Display
The Alpine Halo 11 is the culmination of the Alpine Halo display platform. The large, 11-inch HD touch-screen display features a resolution of 1280 x 720p (WXGA) and has 49% more surface area than the highly popular, award winning Alpine Halo 9 – making icons, menus and visual content even more crisp and vibrant in your dash. The screen is attached to an adjustable mount connected to a single-DIN chassis that’s designed to fit in most 1DIN or 2DIN dash openings.

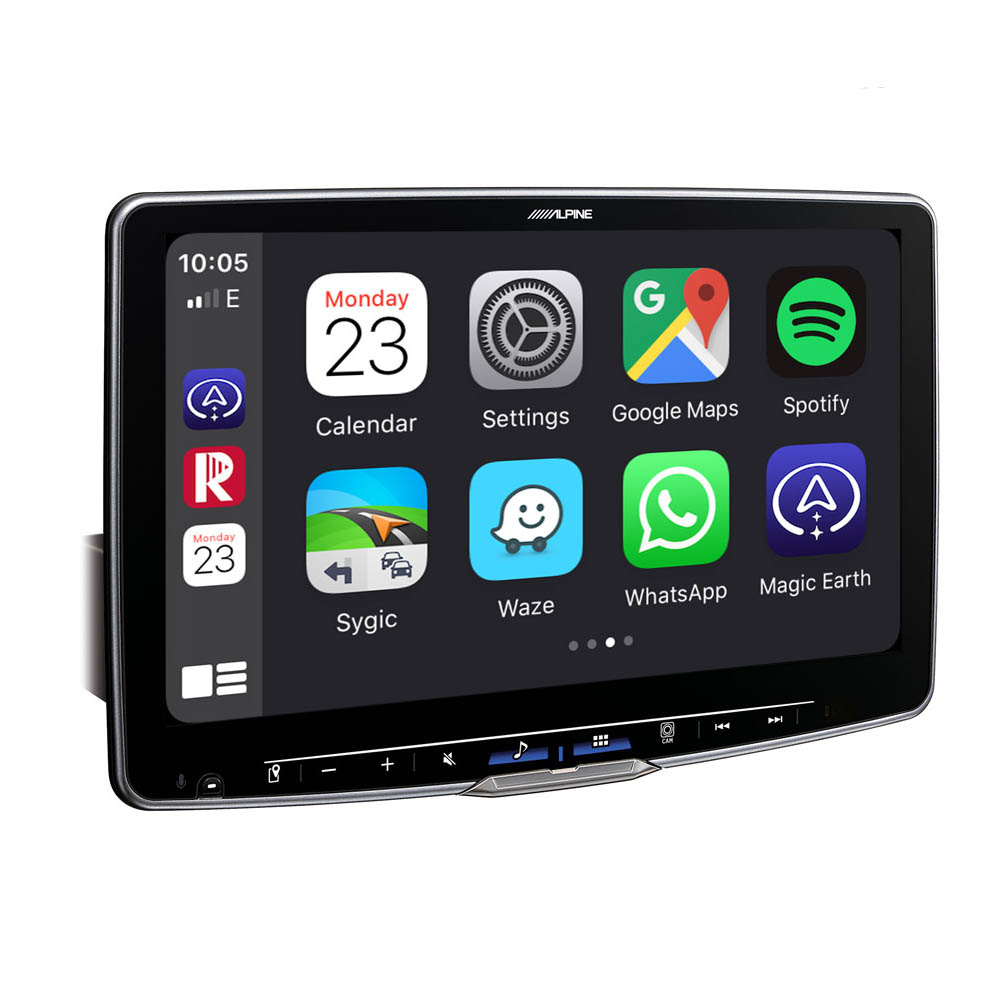

Wireless Apple CarPlay
The iLX-F115D “Works with Apple CarPlay” wirelessly and lets iPhone users make and receive calls, access and write text messages, play music, and get direction in a way that allows them to stay focused on the road. Apple CarPlay is accessed through the capacitive touchscreen or the mic button to activate Siri voice control. Due to the WiFi connection, you can keep your iPhone in your pocket and do not need to plug it in all the time (except for charging).
2x USB Ports
While the Alpine Halo 11 is mech-less (no built-in CD/DVD drive), you still have plenty of entertainment options. 2 USB ports located on the back of the unit allow you for example to connect one mobile device for charging, while the other USB port is used to plug in a USB stick or hard drive to access audio and video files.
User-adjustable Display
With five vertical adjustments, free angle selection, and two separate depths, you can position the floating display in the most optimal position, so you still have access to your dash controls and air vents. The user now can freely adjust the display angle at any time, to achieve best visibility and to avoid sunlight glare.
World’s First Head Unit With Built-in Class-D Amplifier
The iLX-F115D is the world’s first aftermarket head featuring a built-in 4x 50 Watts Class-D amplifier – allowing excellent, high-end sound reproduction with highly reduced noise or phase shift. The key benefit of Class-D amplification technology is its high efficiency of about 90%, compared to 50 – 70% of Class AB amplifiers. New high-speed fans with internal heat sinks keep your Alpine Halo 11 cool – and the music playing.
Enjoy Excellent Sound Quality
Featuring a 56-band Parametric EQ in the advanced mode, a 2-way digital X-over, 6-channel digital time correction and several Bass Engine SQ and MediaXpander sound tuning options, you have excellent tools at your disposal to tune your Alpine Halo 11 and the attached amp / speaker system to perfection. But we didn’t stop there: The Alpine Halo 11 is Hi-Res Audio certified and can decode and playback Hi-Res Audio files up to 96kHz / 1.536 kbps from USB sources in uncompressed supported formats such as FLAC, WAV and APE.
Wide Entertainment Options
The all new DAB/ radio tuner allows DAB – FM switching and lets you enjoy seamless radio reception without interruptions. Next the increased USB video playback formats (MP4, MOV, FLV, MKV), the Alpine Halo 11 features many additional entertainment options: the built-in Bluetooth module allows audio streaming from your phone and the HDMI input enables the connection of an external video playback device. You can of course use Android Auto with any compatible smartphone running Android (wired connection).
Vehicle Data-bus Connections
If your car is equipped with parking sensors and, you can continue to use these convenient functions with your iLX-F115D. Alpine offers many vehicle data-bus interfaces to connect your Alpine Halo 11 to your vehicle’s data-bus system. This enables compatibility with your vehicle’s steering wheel control buttons, display of air conditioning settings as well parking sensor display.
Drive-Assist Cameras
A rear view camera is a great way to make reversing safer. The camera image automatically comes on when you shift into reverse and distance guides that can be adjusted to match your car size will appear on the screen to help you safely park your car. Alpine offers a wide variety of front and rear facing cameras, including multi-view cameras with selectable viewing angles. You can even view the camera screen and parking sensor screen simultaneously, if your car supports it.
External Control Knob
The separately available RUE-BK01 control knob connects wirelessly to the Alpine Halo 11 and can be installed to the left or right side of the touch-screen. Alternatively you can also place the control knob anywhere else in the vehicle with a simple custom installation. Turning the knob will adjust the Head Unit’s volume output, while pushing it activates the rear view camera on the screen.
Note: this control knob has no function if wireless Apple CarPlay is active.
FEATURES
Radio / DAB Tuner
- Preset Stations (FM: 3×12 / DAB: 3×12 / AM: 2×12)
- Memory: Auto Memory
- Seek Mode: Local, DX, Pre-Set, Service
- RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT
- DAB+/DMB Supported
- DAB+ Slideshow Service
- DLS (Dynamic Label Service) and DAB Service Following
- RDS Fallback (where available)
- Auto Ensemble/Service Memory
- Service Search and PTY Search Function
- Alphabet Search Function
BLUETOOTH®
- Built-in BLUETOOTH® Module V4.2
- HFP (Hands-Free Profile) Compatible
- A2DP (Advanced Audio Distribution Profile) Compatible
- AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible
- Phone Book Synchronization
- Speed Dial: 4 Preset Memory (per phone)
- Call History Display: Outgoing Calls / Incoming Calls / Missed Calls
- Redial Function
- Speech Volume Level Adjustment: (Outgoing and Incoming)
- 24 Menu Languages
- Microphone Included
Works with iPhone®
- Compatible with iPhones and iPods featuring a lightning connector
- Various search functions and Album Artwork Display
- Battery Charging
Connectivity
- Works with Apple CarPlay wirelessly (requires CarPlay enabled iPhone)
- Works with Android Auto (Requires Android Auto enabled smartphone, wired connection)
- Dash-Cam Link for DVR-C320S to allow playback and control of your dash-cam
Navigation Function
- Online navigation capability with Apple CarPlay and Android Auto compatible navigation apps
- Includes GPS / Glonass enabled navigation antenna
USB Media Connection
- 2x USB cable included
- USB port 1: data port / USB port 2: charging port
- Music Playback: FLAC/MP3/WMA/AAC/APE compatible
- Video Playback: MP4, MOV, FLV, MKV compatible
- Supported Video Coding: MPEG-4/ H.264 (MPEG-4/AVC) / MPEG-1/ MPEG-2
- Various search functions included

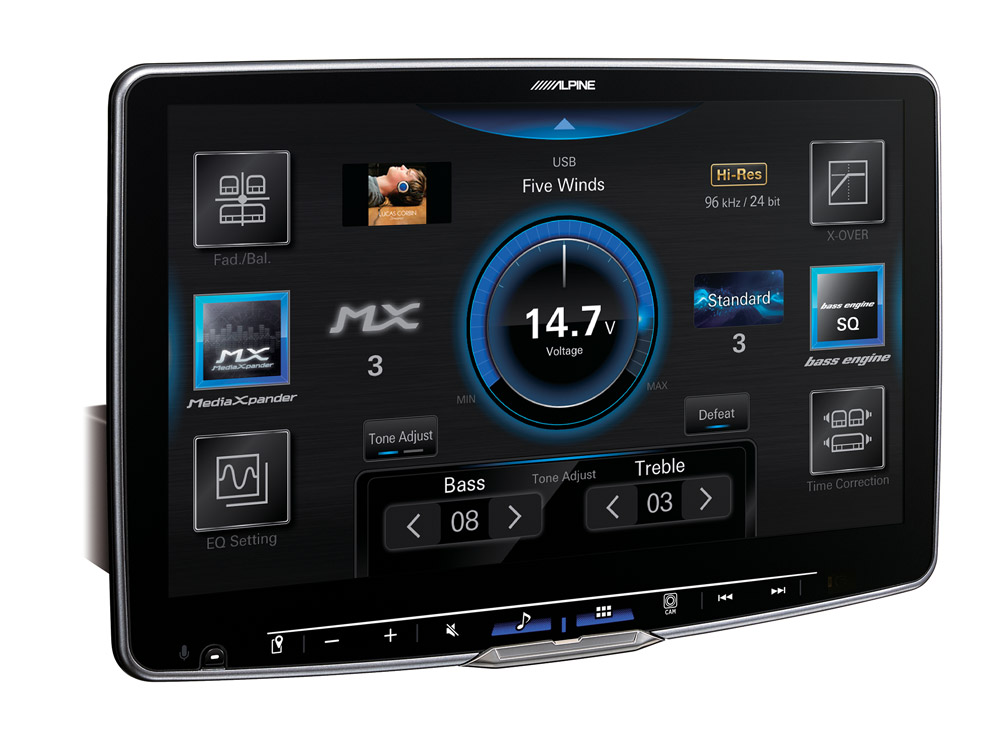

Sound Tuning
- Bass Engine SQ and Bass Engine PRO sound tuning
- Subwoofer Level Adjustment
- 4V PreOut
- 10 Equalizer PreSets
- 13-Channel Parametric EQ x4 audio channels + 4-channel for subwoofer
- 6-Channel Digital Time Correction
- 2-way Digital Crossover
- Independent Source Volume Level Setting
- For detailed sound tuning options please see the owner’s manual PDF below in the “SUPPORT” section
General
- 4x 50 Watts Class-D High Power Amplifier
- 11-inch Capacitive Touch-Screen XWGA Display (1280 x 720p)
- Display angle adjustable after installation
- 3 PreOuts (4V, Front / Rear / Subwoofer)
- 1 A/V AUX Input (3.5mm micro jack)
- 1 HDMI input / 1 HDMI output
- 2 USB Ports (1x USB data port / 1x USB charging)
- Steering Wheel Remote Control Ready
- Vehicle Display Interface Ready (UART connection)
- Remote Control Ready
- 2x Camera Connection (Camera Direct connector) Note: does not support KCX-C250MC camera switch box
- Camera Distance Guides (adjustable)
- Live Contrast Adjustment
- Menu Language: 24 Languages
- Auto Dimmer
- Anti-theft security code
- Engine Start-Stop unaffected
Installation
- Various vehicle specific installation kits available
SPECIFICATIONS
Screen
- Screen Size: 11-inch Capacitive XWGA
- Number of Picture Elements: 2,764,800 pixels (1280 x 3 x 720)
- Illumination System: White LED Backlighting
- Effective Number of Picture Elements: 99.99%
- Colour System: NTSC, PAL
Max Power Output Ratings
- Max Power Output: 4 x 50 W
Radio / DAB Tuner
- FM Tuning Range: 87.5 – 108.0 MHz
- AM Tuning Range: 531 – 1,602 kHz
- DAB band III: 174 – 240 MHz
- Alternate Channel Selectivity: 80 dB
- Signal-to-Noise Ratio: 65 dB
- DAB audio format: DAB / MPEG 2, DAB+/AAC, DMB Profile 1/ BSAC / DMB profile 2 / AAC
WiFi
- Reception Frequency: IEEE 802.11 B/g/n (2.4GHz)
- Channels: 1 – 13 ch (2.4 GHz)
- Security Protocols: WPA3 / WPA2-PSK (TKIP, AES)
USB
- USB Requirements: USB 2.0
- USB 1: data port / 2,400mA (Mass Storage Class)
- USB 2: charging port / 1,500 mA (CDP support)
- USB Class: Mass Storage Class, Play From Device
- File System: FAT 16/32 + exFAT
- FLAC, MP3, WMA, AAC, WAV, APE Decoding
- Video Playback: MP4, MOV, FLV, MKV compatible
- Supported Video Coding: MPEG-4/ H.264 (MPEG-4/AVC) / MPEG-1/ MPEG-2
- Number of Channels: 2-Channel (Stereo)
- Frequency Response: 5 – 20k Hz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
- Total Harmonic Distortion (at 1kHz): 0.008%
- DynamicRange(at 1kHz): 95 dB
- Signal-to-Noise Ratio: 100 dB
GPS / Glonass
- GPS / Glonass compatible navigation antenna included
- GPS frequency: 1575.42 +/- 1.023 MHz
- Reception sensitivity (search): – 136 dB max
BLUETOOTH®
- BLUETOOTH® Version: Bluetooth V4.2
- Output Power: +4 dBm Max. (Power class 2)
- HFP (Hands Free Profile)
- OPP (Object Push Profile)
- PBAP (Phone Book Access Profile)
- HSP (Head Set Profile)
- A2DP (Advanced Audio Distribution Profile)
- AVRCP (Audio/Video Remote Control Profile)
- SPP (Serial Port Profile)
- Supports LDAC Audio Codec
Sound Tuning
- Subwoofer Level Adjustment: 0 to +15
- Subwoofer Phase Setting: 0° or 180°
- BASS ENGINE SQ: 5 Modes, Level 0 to +6
- For detailed sound setting bands and frequencies please see the owner’s manual PDF below in the SUPPORT section
HDMI Section
- Input Format 720p / 480p / 480i
General
- Power Requirement: 14.4 V. DC (11-16 V allowable)
- Pre Output Voltage (Before Clipping): 4 V / 10k ohms
- Dimensions
- Weight: 2.6 kg
- Chassis Size (W x H x D) mm: 178 x 50 x 150 mm
- Display Size (W x H x D) mm: 269 x 178 x 55 mm
| Merk | Alpine |
|---|
