Alpine ILX-F905D multimedia systeem

Name: Alpine ILX-F905D multimedia systeem
SKU: APILXF905D
Price: 999.00 EUR
Availability: InStock

€999,00

1 dinn digitaal media station met 9″ touchscreen. Deze slimme display gaat makkelijk over het dashboard en heeft een wit LED ambient licht aan de onderkant. Het werkt met Apple Carplay en Android Auto en beschikt over DAB+ digital radio, Bluetooth handsfree en audio streaming.

Artikelnummer: APILXF905D Categorieën: 1-Din Radio, Android auto, Apple CarPlay, Autoradio, Dab Radio Tags: Alpine halo 9, alpine ilx905d, AUTO RADIO, Multimedia, multimedia systeem

Beschrijving
Extra informatie

Alpine ILX-F905D multimedia systeem

Multimedia systeem van Alpine iLX-F905D geschikt voor elk voertuig.

Alpine iLX-F905D,1 dinn digitaal media station met 9″ touchscreen. Deze slimme display gaat makkelijk over het dashboard en heeft een wit LED ambient licht aan de onderkant. Het werkt met Apple Carplay en Android Auto en beschikt over DAB+ digital radio, Bluetooth handsfree en audio streaming.

FEATURES

Tuner

Memory Presets: Preset Stations (FM: 12 / MW: 6 / LW: 6)
Memory: Auto Memory
Seek Mode: Local / DX Selection

RDS

RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT

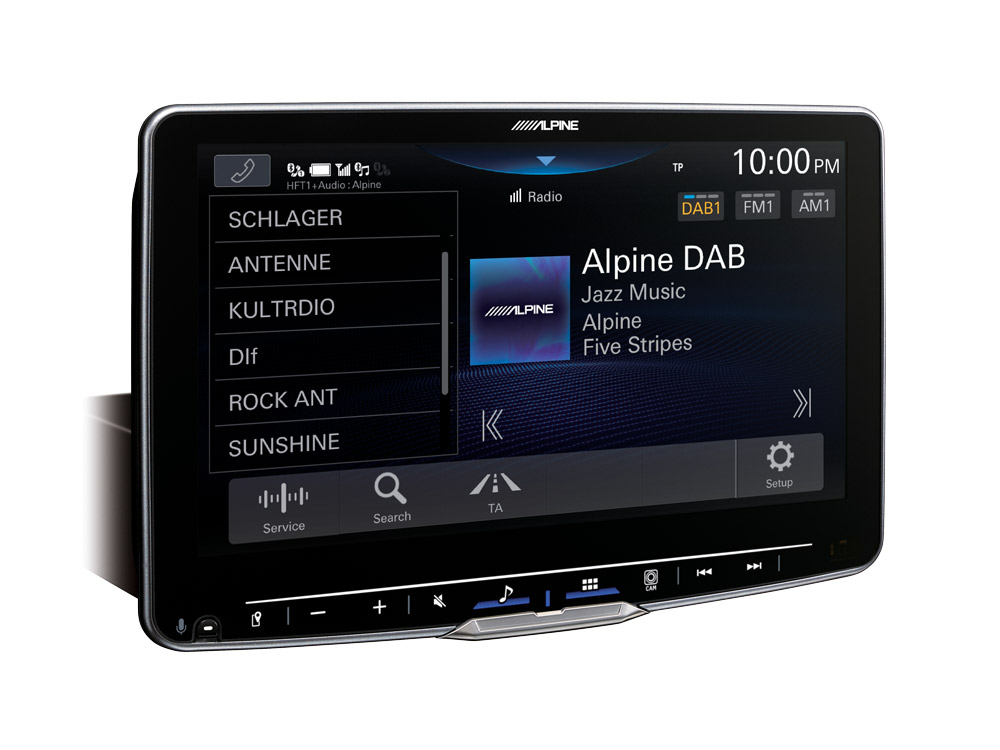

Alpine iLX-F905D DAB Tuner

DAB+ Tuner Built-in
DAB+/DMB Supported
DAB+ Slideshow Service
DLS (Dynamic Label Service)
DAB Service Following
RDS Fallback (where available)
Service Preset: 18 Preset Memory
Auto Ensemble/Service Memory
Service Search Function
PTY Search Function
Alphabet Search Function
Antenna Power Supply Selection

BLUETOOTH®

Built-in BLUETOOTH® Module
Wide Band Speech Technology
HFP (Hands-Free Profile) Compatible
Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
Streaming Music Control: AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible
Advanced BLUETOOTH® Technology
Connection: SSP (Simple Secure Pairing) Supported
Individual Profile Connection Hands Free Phone and Music Streaming
Phone Book: Phone Book Synchronization
Speed Dial: 4 Preset Memory (per phone)
Multiple Phone Number Registration: 5 Phone Numbers can be stored for one name
Device Name Display
Auto Answer
Call History Display: Outgoing Calls / Incoming Calls / Missed Calls
Redial Function
Speech Volume Level Adjustment: Possible for Outgoing and Incoming Volume
DTMF (Touch-Tone) Function
Signal Strength Indicator
Battery Level Indicator
Menu Language Selection: 24 Languages
Firmware Updatable
Microphone Included

Made for iPod® / iPhone®

Compatibility for iPod/iPhone: Made for iPod touch 6th/5th Gen., iPod nano 7th Gen., iPhone X, iPhone 8 and 8 Plus, iPhone 7 and 7 Plus, iPhone 6 and 6 Plus, iPhone 5S, iPhone 5C, iPhone 5, iPhone 4s
Connection: KCU-471i Required (Sold separately)
Available Selections: Playlist / Artist / Album /Song / Podcast / Genre / Composer / Audiobook
Alphabet Search
Artwork Display
Direct Up / Down: Playlist / Artist / Album / Genre / Composer
M.I.X. (Shuffle) Play: Song, Albums, All
Repeat
Battery Charging

Alpine ILX-F905D Connectivity

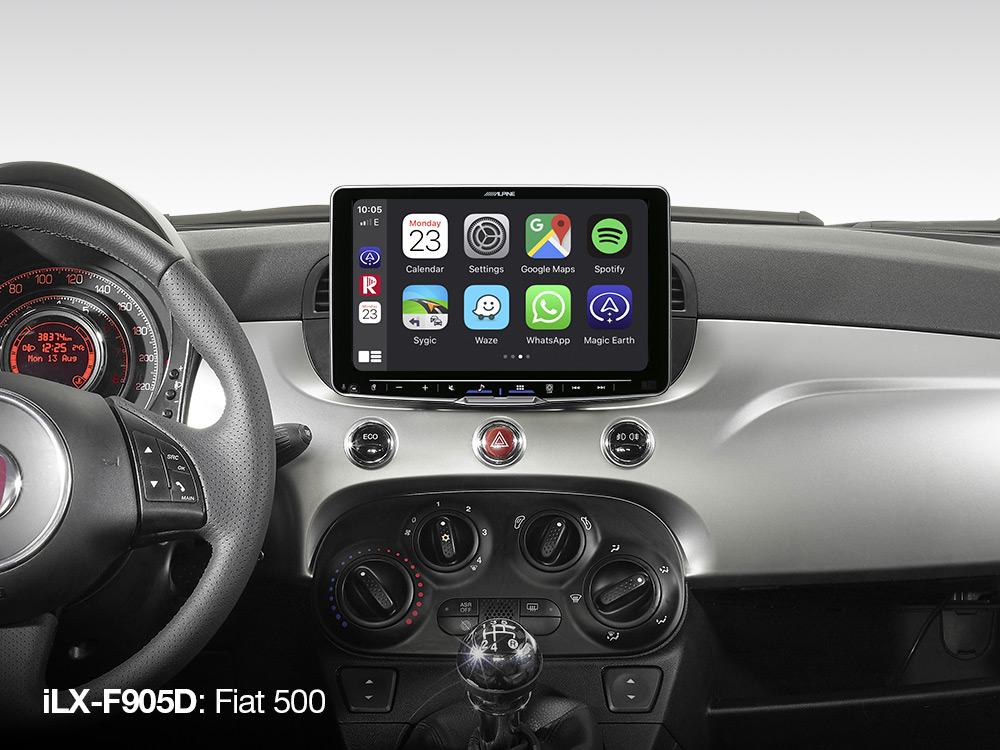

Works with Apple CarPlay (requires CarPlay enabled iPhone)

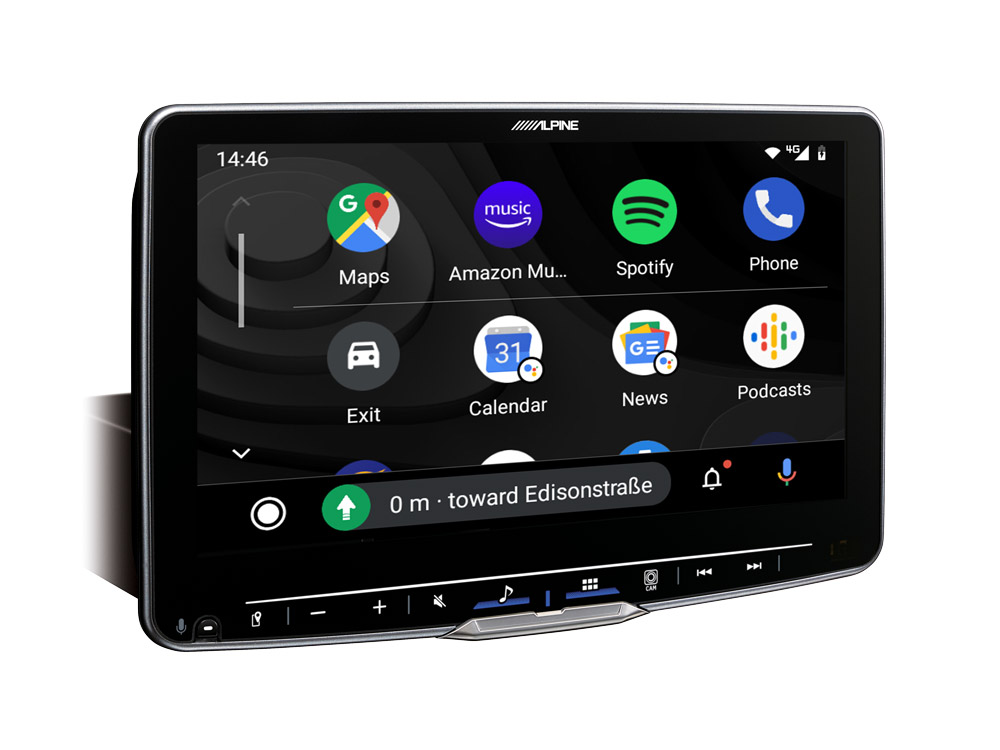

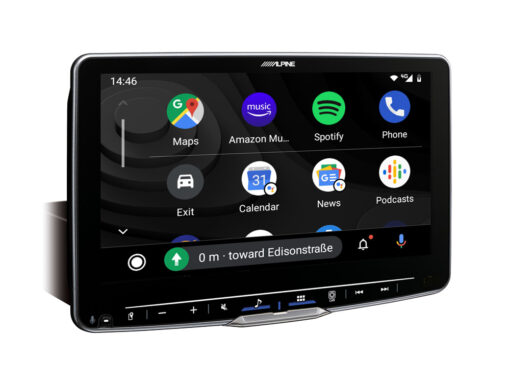

Works with Android Auto (Requires Android Auto enabled smartphone)

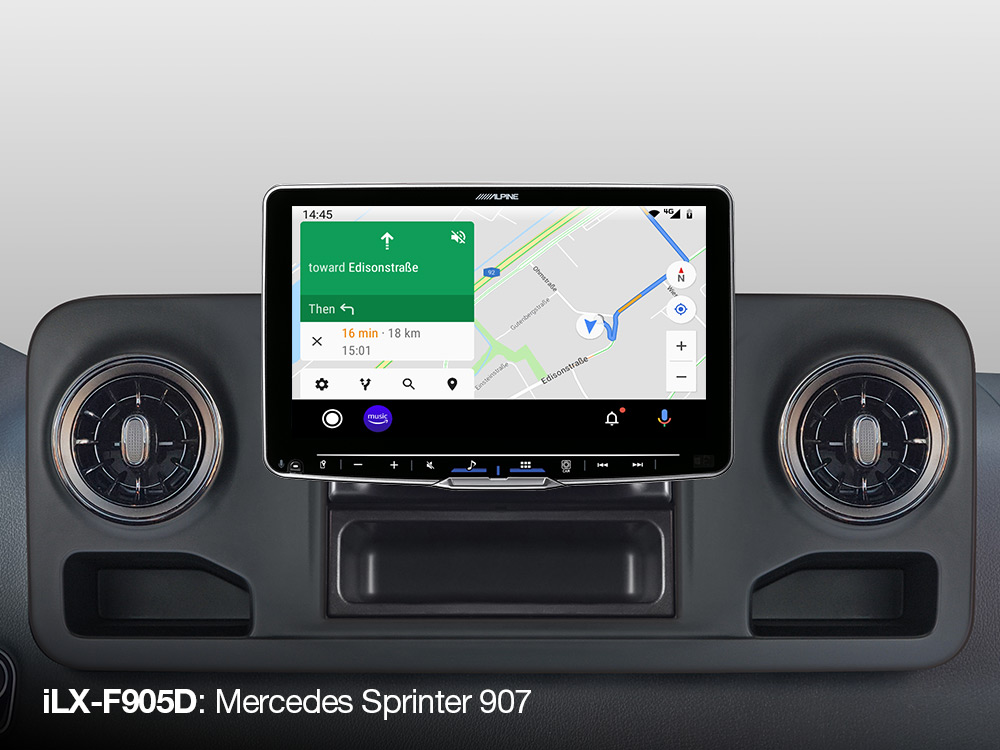

Alpine iLX-F905D Navigation Function

Online navigation capability with Apple CarPlay and Android Auto
Includes GPS / Glonass enabled navigation antenna
Direct navigation access key to launch CarPlay or Google maps

USB Media Connection

USB Connection: USB Extension Cable Included
Music Playback: FLAC/MP3/WMA/AAC compatible
Video Playback: MP4 compatible
File / Folder Name Search
Tag Info Search
Folder Up / Down
M.I.X. Random Play
Repeat

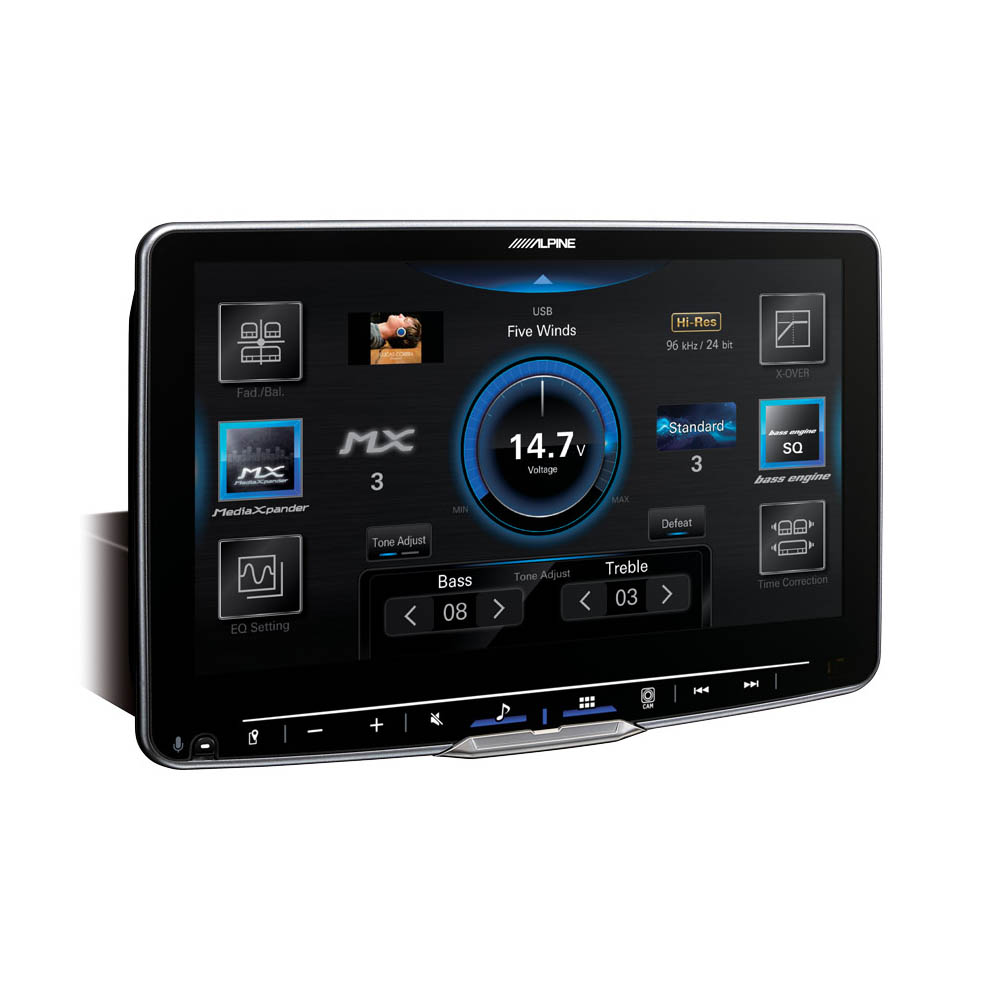

Sound Tuning

Bass Engine SQ
Bass Engine™ Pro
Subwoofer Level Adjustment
Subwoofer Phase Select
4V High Voltage PreOut
Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classical
Dual HD EQ (9-band Parametric Equalizer front/rear)
6 Channel Digital Time Correction
Digital Crossover Setting
Customized Sound Setting by Car Type
MediaXpander HD
Application Volume Level Setting
Sound Setting Data Download
Easy, Step-by-Step Sound Customization
Alpine TuneIt App ready

General

Power Output: 4 x 50 W High Power Amplifier
Advanced Power IC
Display: 9-inch Capacitive WVGA High Resolution Display
White LED Backlighting System
Control Type: Touch, Drag, Flick
My Favorites Function
Automatic Setting Change for 2 Users
High Grade Audiophile Design
3 PreOuts (4V, Front / Rear / Subwoofer)
AUX-In: 1 A/V AUX Input (3.5mm micro jack)
Steering Wheel Remote Control Function
Vehicle Display Interface Ready (UART connection)
Navigation Guidance Mix
Camera Connection RCA
Camera Guide Line Adjustment
Rearview Camera Display Automatic Boot-up
Simple Mode & Info Mode Display Selection
Visual EQ
Live Contrast Adjustment
Menu Language: 24 Languages (for AV / Bluetooth),
Clock
Auto Dimmer
Anti-theft security code
Firmware Updatable
Power Antenna Lead
Remote Turn-On
HDMI Input (Alpine Special HDMI connector required)
Engine Start-Stop unaffected

Installation

Perfect F.I.T. Kit Solutions available

SPECIFICATIONS

Screen

Screen Size: 9-inch Capacitive WVGA
LCD Type: Transparent Type TN LCD
Operation System: TFT Active Matrix
Number of Picture Elements: 1,152,000 pixels (800 x 3 x 480)
Illumination System: White LED Backlighting
Effective Number of Picture Elements: 99.99%
Colour System: NTSC, PAL

Max Power Output Ratings

Max Power Output: 4 x 50 W

FM Tuner

Tuning Range: 87.5 – 108.0 MHz
Mono Usable Sensitivity: 8.1 dBf (0.7 µV / 75 ohms)
50dB Quieting Sensitivity: 12 dBf (1.1 µV / 75 ohms)
Alternate Channel Selectivity: 80 dB
Signal-to-Noise Ratio: 65 dB
Stereo Separation: 35 dB
Capture Ratio: 2 dB

MW Tuner

Tuning Range: 531 – 1,602 kHz
Usable Sensitivity (IEC Standard): 25.1 µV / 28 dBf

LW Tuner

Tuning Range: 153 – 281 kHz
Usable Sensitivity (IEC Standard): 31.6 µV / 30 dBf

USB

USB Requirements: USB 2.0
Max. Power Consumption: 1,500 mA (CDP Support)
USB Class: Mass Storage Class, Play From Device
File System: FAT 16/32
MP3 Decoding: MPEG-1/2 AUDIO Layer-3
WMA Decoding: Windows Media™ Audio
AAC Decoding: ACC-LC format ′′.m4a′′ file
FLAC Decoding
Number of Channels: 2-Channel (Stereo)
Frequency Response: 5 – 20k Hz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
Total Harmonic Distortion (at 1kHz): 0.008%
DynamicRange(at 1kHz): 95 dB
Signal-to-Noise Ratio: 100 dB
Channel Separation (at 1kHz): 85 dB

GPS / Glonass

GPS / Glonass compatible navigation antenna included

BLUETOOTH®

BLUETOOTH® Version: Bluetooth V2.1+EDR
Output Power: +4 dBm Max. (Power class 2)
HFP (Hands Free Profile)
OPP (Object Push Profile)
PBAP (Phone Book Access Profile)
HSP (Head Set Profile)
A2DP (Advanced Audio Distribution Profile)
AVRCP (Audio/Video Remote Control Profile)
SPP (Serial Port Profile)

Sound Tuning

Subwoofer Level Adjustment: 0 to +15
Subwoofer Phase Setting: 0° or 180°
BASS ENGINE SQ: 5Mode, Level 0 to +6
HighPassFilter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
HighPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
HighPassFilter (Gain): -12 to 0 dB
LowPassFilter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
LowPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
LowPassFilter (Gain): -12 to 0 dB
Time Correction: 0.0 – 9.9ms (0.1ms step)
Dual HD EQ Front + Rear
Parametric Equalizer (Band 1): 20 – 100 Hz
Parametric Equalizer (Band 2): 63 – 315 Hz
Parametric Equalizer (Band 3): 125 – 500 Hz
Parametric Equalizer (Band 4): 250 – 1k Hz
Parametric Equalizer (Band 5): 500 – 2k Hz
Parametric Equalizer (Band 6): 1k – 4k Hz
Parametric Equalizer (Band 7): 2k – 7.2k Hz
Parametric Equalizer (Band 8): 5.8k – 12k Hz
Parametric Equalizer (Band 9): 9k – 20k Hz
Parametric Equalizer (Gain): -14 to +14
Application Volume Level Setting: -14 to +14

HDMI Section

Input Format 480p

General

Power Requirement: 14.4 V. DC (11-16V allowable)
Pre Output Voltage (Before Clipping): 4 V / 10k ohms
Maximum Mounting Angle: 30°

Dimensions

Din Size: 1DIN chassis and 9” Capacitive Touch Screen
Chassis Size (W x H x D) mm: 178 x 50 x 160 mm
Nose Piece Size (W x H x D) mm: 235.2 x 152.2 x 19 mm

Merk	Alpine
