FEATURES

Tuner

• Memory Presets: Preset Stations (FM: 12 / MW: 6 / LW: 6)
• Memory: Auto Memory
• Seek Mode: Local / DX Selection

RDS

• RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT

DAB Tuner

• DAB+ Tuner Built-in
• DAB+/DMB Supported
• DAB+ Slideshow Service
• DLS (Dynamic Label Service)
• DAB Service Following
• RDS Fallback (where available)
• Service Preset: 18 Preset Memory
• Service Search Function
• PTY Search Function
• Alphabet Search Function
• Antenna Power Supply Selection

BLUETOOTH®

• Built-in BLUETOOTH® Module
• HFP (Hands-Free Profile) Compatible
• Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
• Streaming Music Control: AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible
• Connection: SSP (Simple Secure Pairing) Supported
• Phone Book: Phone Book Synchronization
• Speed Dial: 4 Preset Memory (per phone)
• Multiple Phone Number Registration: 5 Phone Numbers can be stored for one name
• Speech Volume Level Adjustment: Possible for Outgoing and Incoming Volume
• Menu Language Selection: 24 Languages

Made for iPod® / iPhone®

• Connection: KCU-471i Required (Sold separately)
• Available Selections: Playlist / Artist / Album /Song / Podcast / Genre / Composer / Audiobook
• Alphabet Search
• Artwork Display

Connectivity

• Works with Apple CarPlay (requires CarPlay enabled iPhone)

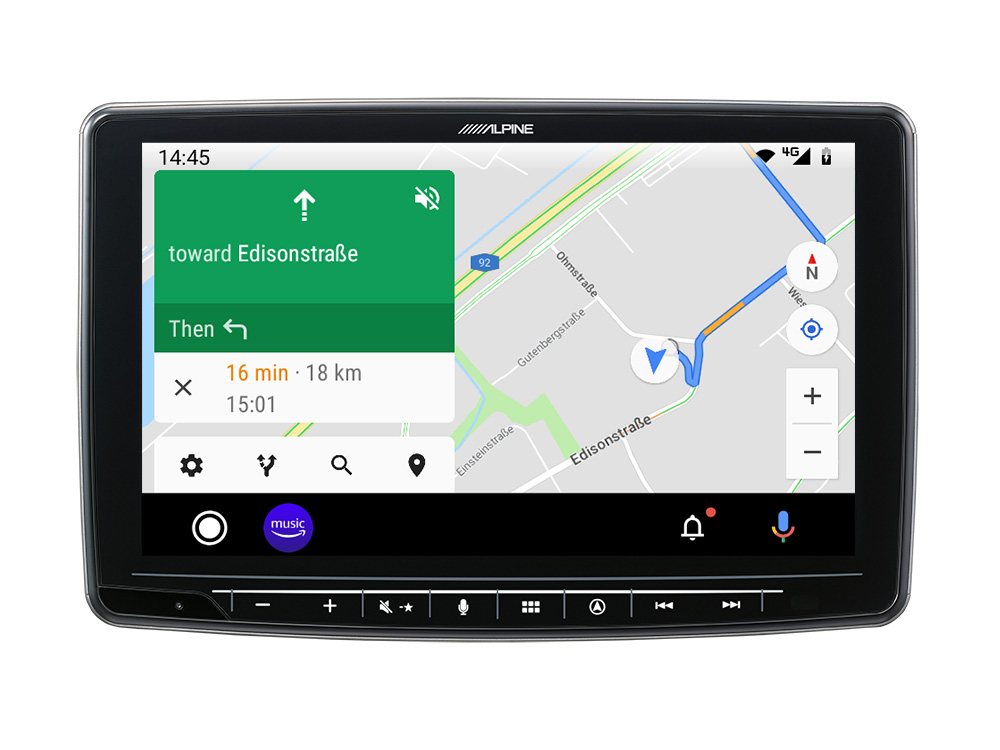

• Works with Android Auto (Requires Android Auto enabled smartphone)

Navigation Functions

• Map Coverage: 48 Countries (Western and Eastern Europe) by TomTom maps

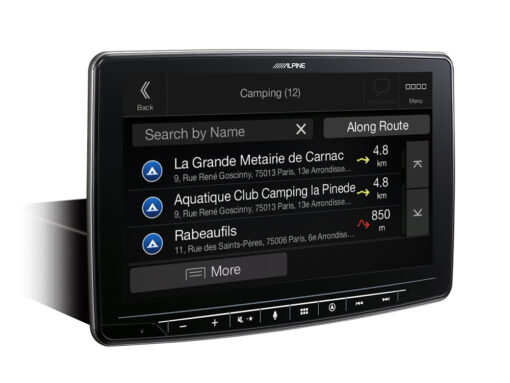

• Included park4night database
• Preflight Check
• Motorhome profiles
• 3 years free-of-charge map update
• Menu Language: 29 Languages
• Voice Guidance Language: 29 Languages for Voice Guidance, 15 Languages for Text-to-Speech (TTS)
• Advanced Address Search
• Post Code Search
• Smart Routes: Smart Routes using historic traffic patterns
• Advanced Route Planning
• Advanced TMC Mode
• Map Display Mode: 2D Heading Up, 2D North Up, 3D
• 3D City Mode: 3D Building/Icon Display
• Elevation Map Display: 3D maps with elevation mode
• 3D Motorway Junction View: Junction View with Sign Post
• Drive Lane Suggestion
• Voice Guidance Mixing
• Text-to-Speech
• 3 Positioning Sensors: GPS / Glonass, Gyroscope, Vehicle Speed Pulse

USB Media Connection

• USB Extension Cable Included
• Music Playback: FLAC/MP3/WMA/AAC compatible
• Video Playback: MP4 compatible
• File / Folder Name Search
• Tag Info Search

Sound Tuning

• Bass Engine SQ
• Bass Engine™ Pro
• 4V High Voltage PreOut
• Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classical
• 6 Channel Digital Time Correction
• Digital Crossover Setting
• MediaXpander
• Application Volume Level Setting

General

• Power Output: 4 x 50 W High Power Amplifier
• Display: 9-inch Capacitive WVGA High Resolution Display
• White LED Backlighting System
• Control Type: Touch, Drag, Flick
• AUX-In: 1 A/V AUX Input (3.5mm micro jack)
• Steering Wheel Remote Control Function
• Vehicle Display Interface Ready (UART connection)
• Camera Connection & Built-in Controls for Multi-View Cameras
• Camera Guide Line Adjustment
• Rearview Camera Display Automatic Boot-up
• Menu Language: 24 Languages (for AV / Bluetooth),
• Anti-theft security code
• HDMI Input (Alpine Special HDMI connector required)
• Engine Start-Stop unaffected

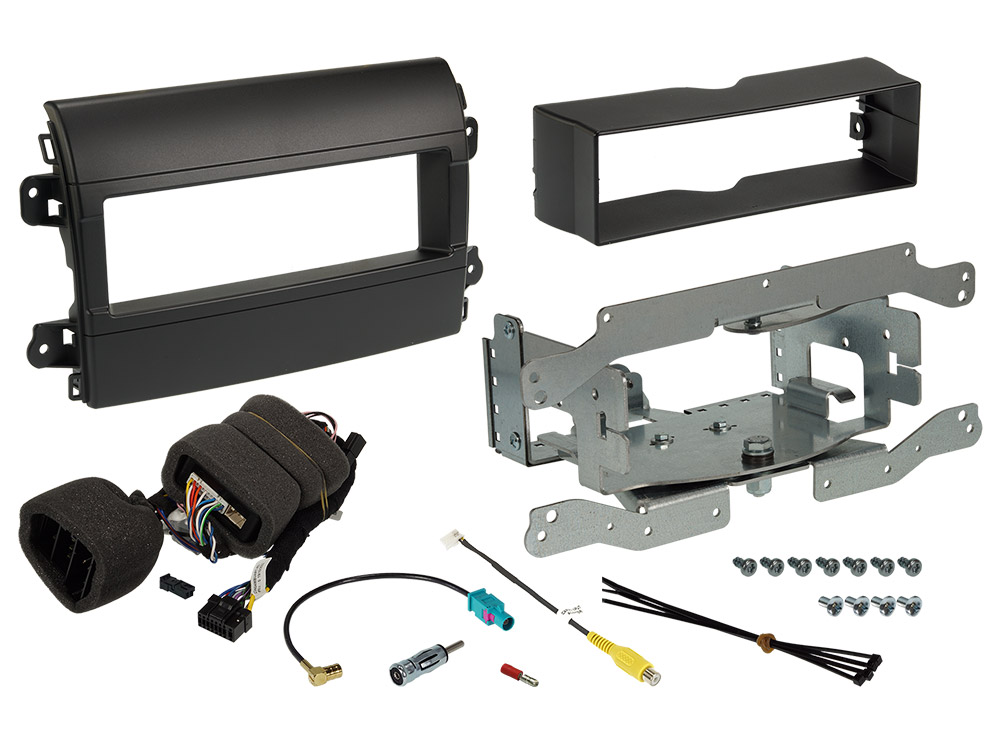

Installation

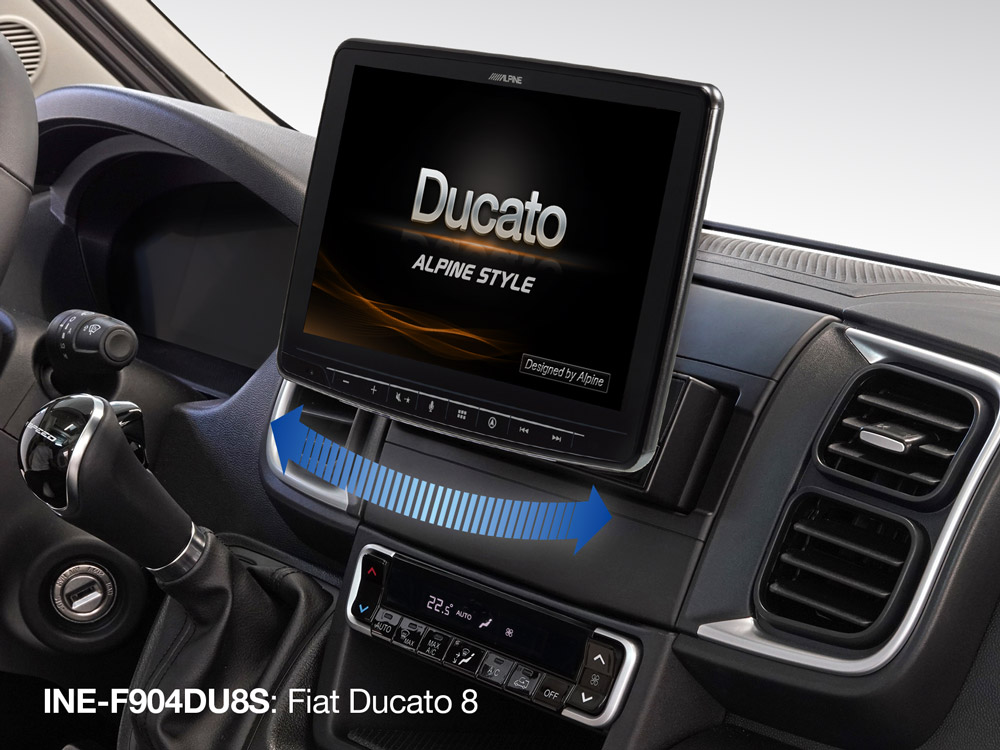

• Includes Plug-and-play wiring harness to connect an Alpine Head Unit to the Fiat Ducato 8 electric system
• Includes steering wheel remote control interface to enable operation of your Alpine Halo system from your steering wheel buttons (including phone operation)

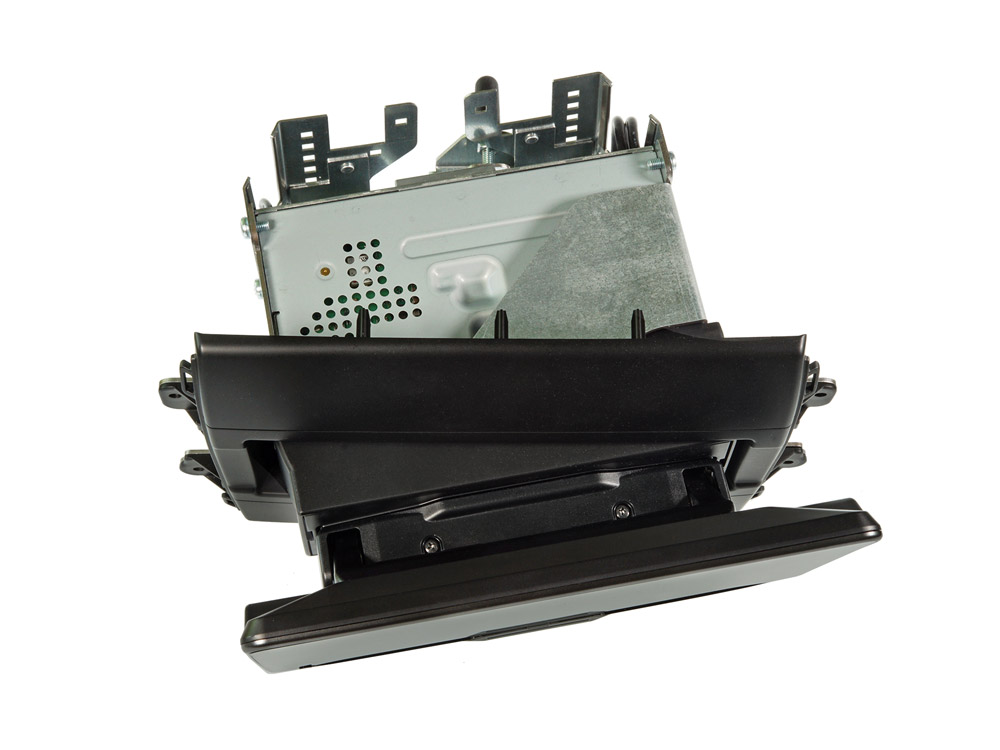

• Custom-fit metal brackets to mount the Halo unit
• Plastic trim panel
• LIN Bus Adapter KWE-Qi-DU8 (sold separately) needed for Ducato original Qi phone charger to work with Alpine system

SPECIFICATIONS

Screen

• Screen Size: 9-inch Capacitive WVGA
• LCD Type: Transparent Type TN LCD
• Number of Picture Elements: 1,152,000 pixels (800 x 3 x 480)
• Colour System: NTSC, PAL

Max Power Output Ratings

• Max Power Output: 4 x 50 W

FM Tuner

• Tuning Range: 87.5 – 108.0 MHz
• Mono Usable Sensitivity: 8.1 dBf (0.7 µV / 75 ohms)
• 50dB Quieting Sensitivity: 12 dBf (1.1 µV / 75 ohms)
• Alternate Channel Selectivity: 80 dB
• Signal-to-Noise Ratio: 65 dB

MW Tuner

• Tuning Range: 531 – 1,602 kHz
• Usable Sensitivity (IEC Standard): 25.1 µV / 28 dBf

LW Tuner

• Tuning Range: 153 – 281 kHz
• Usable Sensitivity (IEC Standard): 31.6 µV / 30 dBf

USB

• USB Requirements: USB 2.0
• Max. Power Consumption: 1,500 mA (CDP Support)
• USB Class: Mass Storage Class, Play From Device
• File System: FAT 16/32
• MP3 Decoding: MPEG-1/2 AUDIO Layer-3
• WMA Decoding: Windows Media™ Audio
• AAC Decoding: ACC-LC format ′′.m4a′′ file
• FLAC Decoding
• Number of Channels: 2-Channel (Stereo)
• Total Harmonic Distortion (at 1kHz): 0.008%
• Signal-to-Noise Ratio: 100 dB

GPS / Glonass

• GPS / Glonass compatible navigation antenna included

BLUETOOTH®

• BLUETOOTH® Version: Bluetooth V2.1+EDR
• HFP (Hands Free Profile)
• PBAP (Phone Book Access Profile)
• HSP (Head Set Profile)
• A2DP (Advanced Audio Distribution Profile)
• AVRCP (Audio/Video Remote Control Profile)

Sound Tuning

• Subwoofer Level Adjustment: 0 to +15
• Subwoofer Phase Setting: 0° or 180°
• BASS ENGINE SQ: 5Mode, Level 0 to +6
• HighPassFilter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
• HighPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
• HighPassFilter (Gain): -12 to 0 dB
• LowPassFilter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
• LowPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
• LowPassFilter (Gain): -12 to 0 dB
• Time Correction: 0.0 – 9.9ms (0.1ms step)
• Dual HD EQ Front + Rear
• Parametric Equalizer (Band 1): 20 – 100 Hz
• Parametric Equalizer (Band 2): 63 – 315 Hz
• Parametric Equalizer (Band 3): 125 – 500 Hz
• Parametric Equalizer (Band 4): 250 – 1k Hz
• Parametric Equalizer (Band 5): 500 – 2k Hz
• Parametric Equalizer (Band 6): 1k – 4k Hz
• Parametric Equalizer (Band 7): 2k – 7.2k Hz
• Parametric Equalizer (Band 8): 5.8k – 12k Hz
• Parametric Equalizer (Band 9): 9k – 20k Hz
• Parametric Equalizer (Gain): -14 to +14
• Application Volume Level Setting: -14 to +14

HDMI Section

• Input Format 480p / VGA

General

• Power Requirement: 14.4 V. DC (11-16V allowable)
• Pre Output Voltage (Before Clipping): 4 V / 10k ohms
• Maximum Mounting Angle: 30°

Dimensions

• DIN Size: 1DIN chassis and 9” Capacitive Touch Screen
• Chassis Size (W x H x D) mm: 178 x 50 x 160 mm
• Nose Piece Size (W x H x D) mm: 235.2 x 152.2 x 19 mm

Compatible Cars

Note:

• For vehicles with radio preparation or “open dash” configuration (without radio).
