FEATURES

Tuner

• Memory Presets: FM: 24 / MW: 6 / LW: 6)
• Seek Mode: Local / DX Selection

RDS

• RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT

DAB Tuner

• DAB+ Tuner Built-in
• DAB+/DMB Supported
• DAB+ Slideshow Service
• DAB Service Following
• RDS Fallback (where available)
• Service Preset: 18 Preset Memory

BLUETOOTH

• Built-in BLUETOOTH® Module
• HFP (Hands-Free Profile) Compatible
• Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
• Streaming Music Control: AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible
• Advanced BLUETOOTH® Technology
• Connection: SSP (Simple Secure Pairing) Supported
• Menu Language Selection: 24 Languages
• Microphone integrated

Navigation

• Map Coverage: 48 Countries (Western and Eastern Europe)
• Menu Language: 29 Languages
• Voice Guidance Language: 29 Languages for Voice Guidance, 15 Languages for Text-to-Speech (TTS)
• Advanced Address Search
• Post Code Search
• Advanced POI Functions
• 7 Alternative Route Recommendation
• Advanced TMC Mode
• 3D maps with elevation mode
• 3D Motorway Junction View
• Text-to-Speech
• 3 Positioning Sensors: GPS, Gyroscope, Vehicle Speed Pulse

USB Media Connection

• USB Connection
• Music and Video Playback: FLAC/ MP3/ WMA/ AAC/ AVI/ MP4/ MKV

Sound Tuning

• Bass Engine™ Pro
• Subwoofer Level Adjustment
• 4V PreOuts
• Equalizer: 10 selections
• 9-Band Parametric Equalizer
• 6 Channel Digital Time Correction
• Digital Crossover Setting

General

• Power Output: 4 x 50 W High Power Amplifier
• Display: 9′′ Capacitive WVGA High Resolution Display
• My Favourites Function
• 3 PreOuts (4 V, Front / Rear / Subwoofer) KTX-PRE1 Required (Sold separately)
• AUX-In: 1 A/V AUX Input  (RCA)
• Steering Wheel Remote Control Function (including phone operation)
• Remote Control Ready
• Navigation Guidance Mix
• Camera Connection & Built-in Controls for Multi-View Cameras
• Camera Guide Line Adjustment
• Menu Languages: 24 Languages (for AV / Bluetooth), 29 Languages (Navigation Menu and Voice Guidance)
• Anti-theft security code
• HDMI Input / Output
• Engine Start-Stop unaffected
• Ready for optional DVD Player DVE-5300

Map & Database

• Online Map Update via alpine.naviextras.com
• Featuring TomTom Maps
• 3 Years free of charge map update (multiple updates possible)

Installation

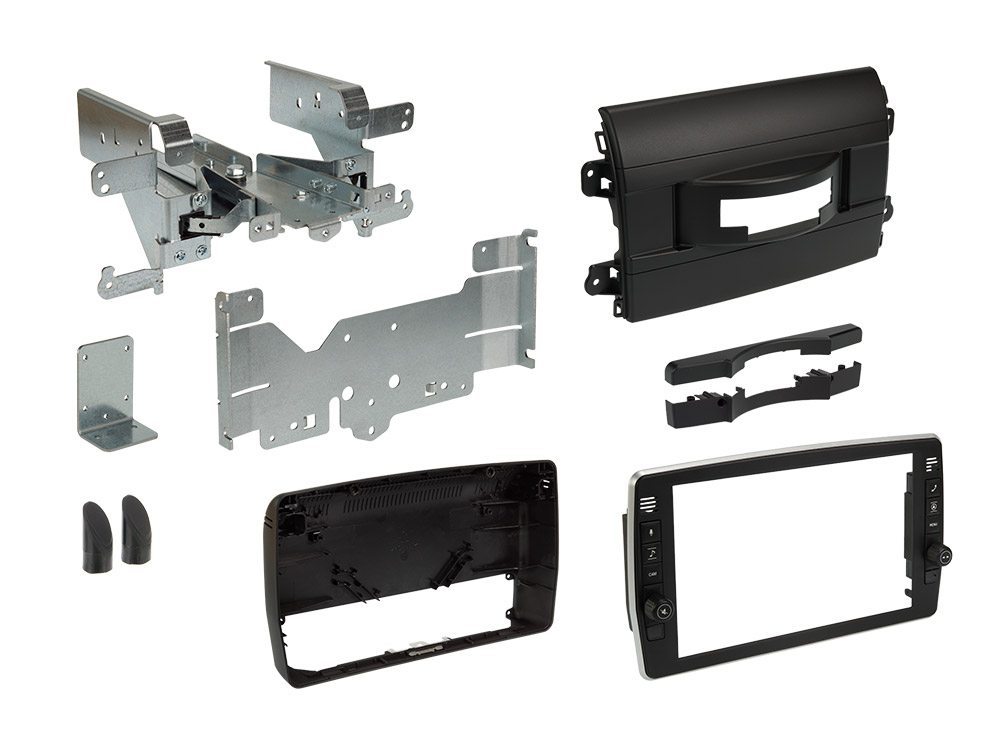

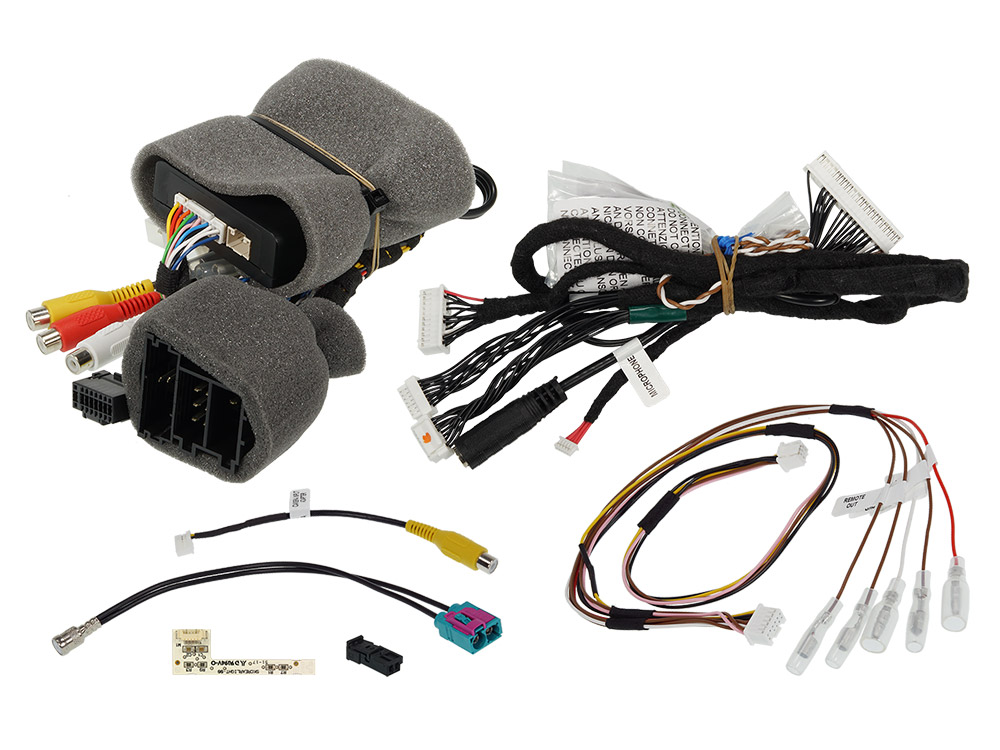

• Includes installation brackets, wiring harness and SWRC interface for complete installation.

SPECIFICATIONS

Screen

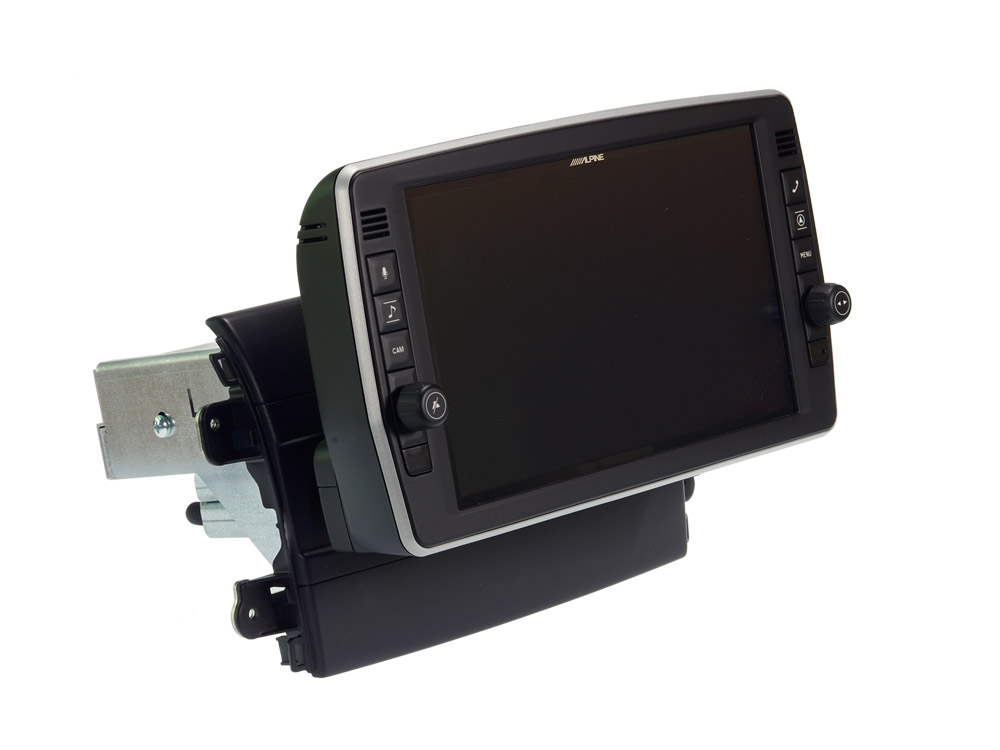

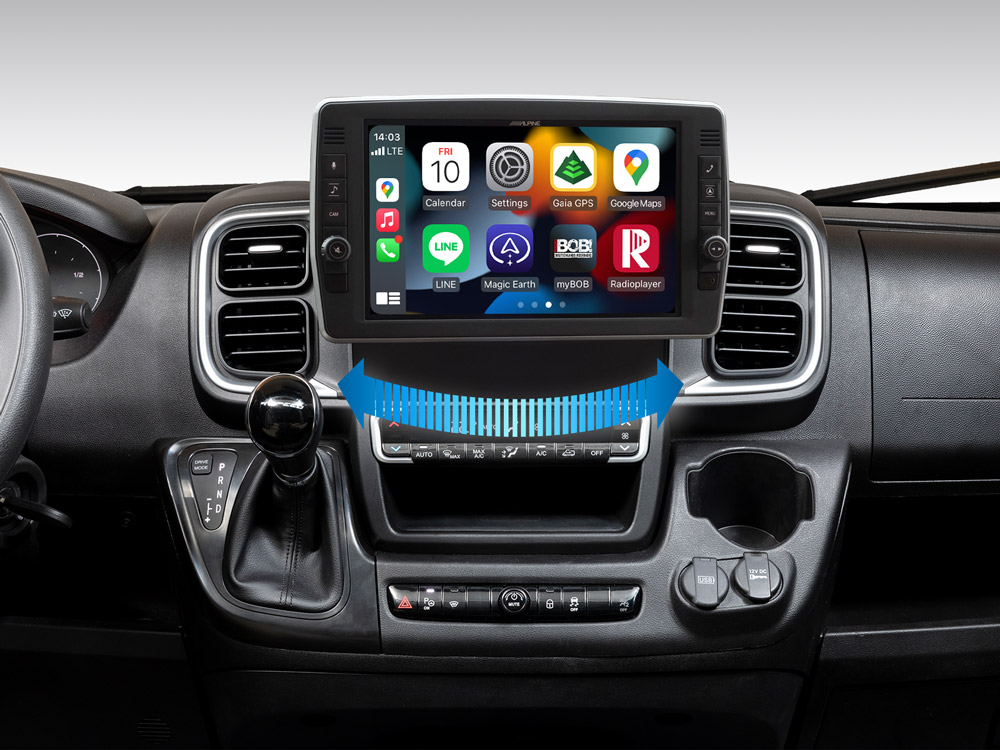

• Screen Size: 9 inch Capacitive WVGA with swivel function (left / right)
• LCD Type: Transparent Type TN LCD
• Number of Picture Elements: 1,152,000 pixels (800 x 3 x 480)

Max Power Output Ratings

• Max Power Output: 4 x 50 W

FM Tuner

• Tuning Range: 87.5 – 108.0 MHz
• Alternate Channel Selectivity: 80 dB
• Signal-to-Noise Ratio: 65 dB

MW Tuner

• Tuning Range: 531 – 1,602 kHz

LW Tuner

• Tuning Range: 153 – 281 kHz

USB

• USB Requirements: USB 2.0
• Max. Power Consumption: 1,500 mA (CDP Support)
• USB Class: Mass Storage Class, Play From Device
• File System: FAT 16/32
• MP3 Decoding: MPEG-1/2 AUDIO Layer-3
• WMA Decoding: Windows Media™ Audio
• AAC Decoding: ACC-LC format ′′.m4a′′ file
• Flac Decoding
• USB Video playback (AVI/MP4/MKV file with H.264 Video and MP3/AAC Audio)
• Number of Channels: 2-Channel (Stereo)

BLUETOOTH®

• BLUETOOTH® Version: Bluetooth V3.0+EDR
• Output Power: +4 dBm Max. (Power class 2)
• HFP: HFP (Hands Free Profile)
• PBAP (Phone Book Access Profile)
• HSP (Head Set Profile)
• A2DP: A2DP (Advanced Audio Distribution Profile)

HDMI Section

• Input Format 480p/VGA
• Output Format 480p

General

• Power Requirement: 14.4 V. DC (11-16V allowable)
• Pre Output Voltage (Before Clipping): 4 V / 10k ohms
• Maximum Mounting Angle: 30°

Dimensions

• X903D-DU8: Fits for Fiat Ducato 8
• Chassis Size (W x H x D) mm: 178 x 50 x 164 mm

The Caravan and Camper Software considers following restrictions and limitations by calculating the route and also gives warnings whilst driving without calculated route in 40 countries*:

• General through traffic restrictions for trucks (i.e. environmental zones)
• Through traffic restrictions for all categories of dangerous goods
• (i.e. explosives, flammables)
• Turn and U-Turn restrictions for trucks
• Restrictions for trailers
• Limitations of length
• Limitations of width
• Limitations of height
• Limitations of weight
• Height and width limitations of tunnels and bridge pass throughs
• Maximum allowed weight of bridges

* Andorra, Austria, Belgium, Bulgaria, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Germany, Gibraltar, Greece, Hungary, Iceland, Ireland, Italy, Kazakhstan, Kosovo, Latvia, Liechtenstein, Lithuania, Luxembourg, Monaco, Netherlands, Norway, Poland, Portugal, Romania, Russia, San Marino, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey, Ukraine, United Kingdom

Compatible Cars

Note:

• the X903D-DU8S is only compatible with vehicles featuring radio preparation or open dash (no radio equipped).
