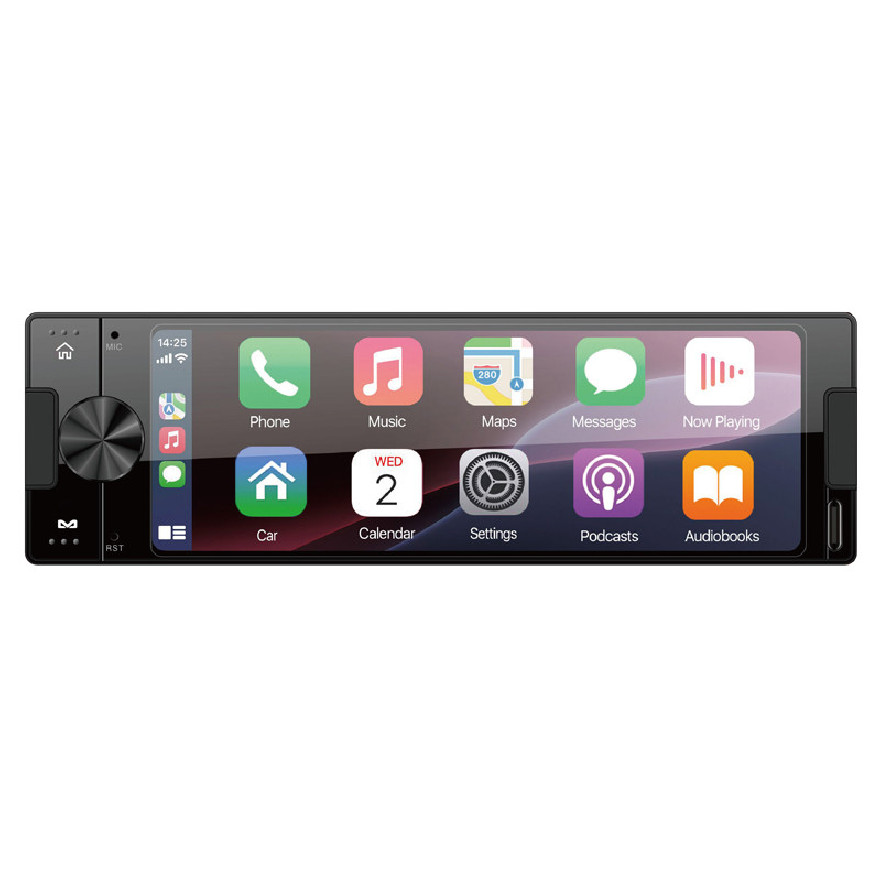

Smartphone car radio in 1 DIN format with Apple CarPlay and Android Auto
Specificaties
– 16.21 cm (6.38″) color display
– USB-A port on the back of the device for USB media
– USB-C charging port on the front of the device
– max. 4x 48 watts output power
– BT audio receiver
– BT handfree system with integrated microphone
– DAB+ radio receiver with FM and RDS functions

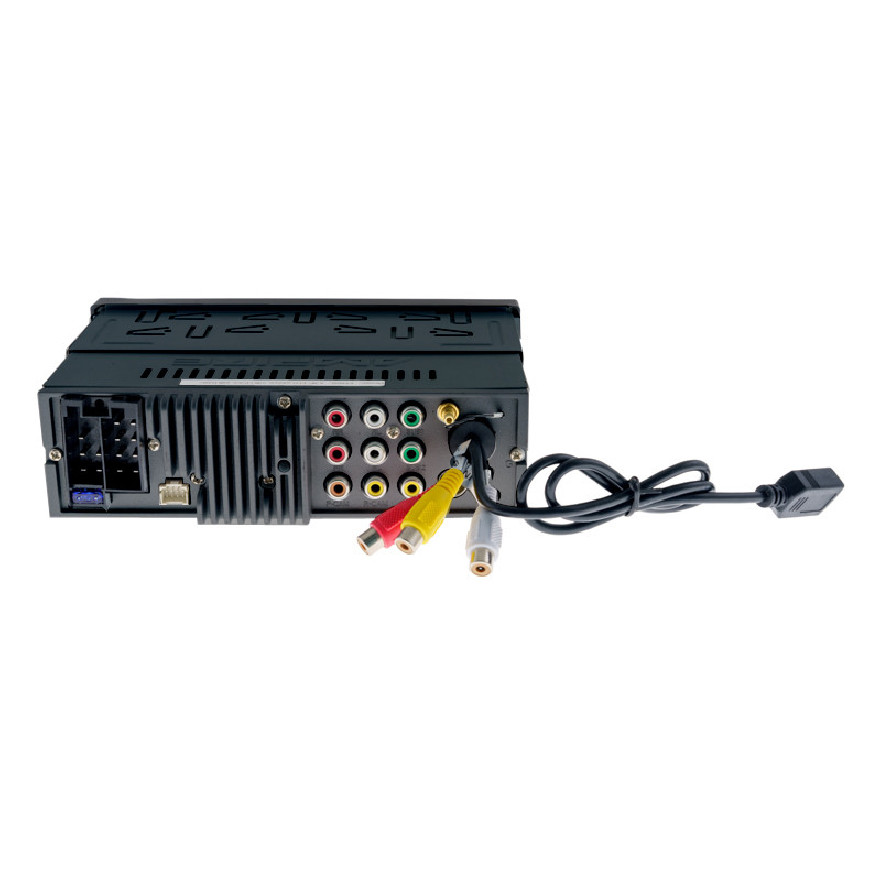

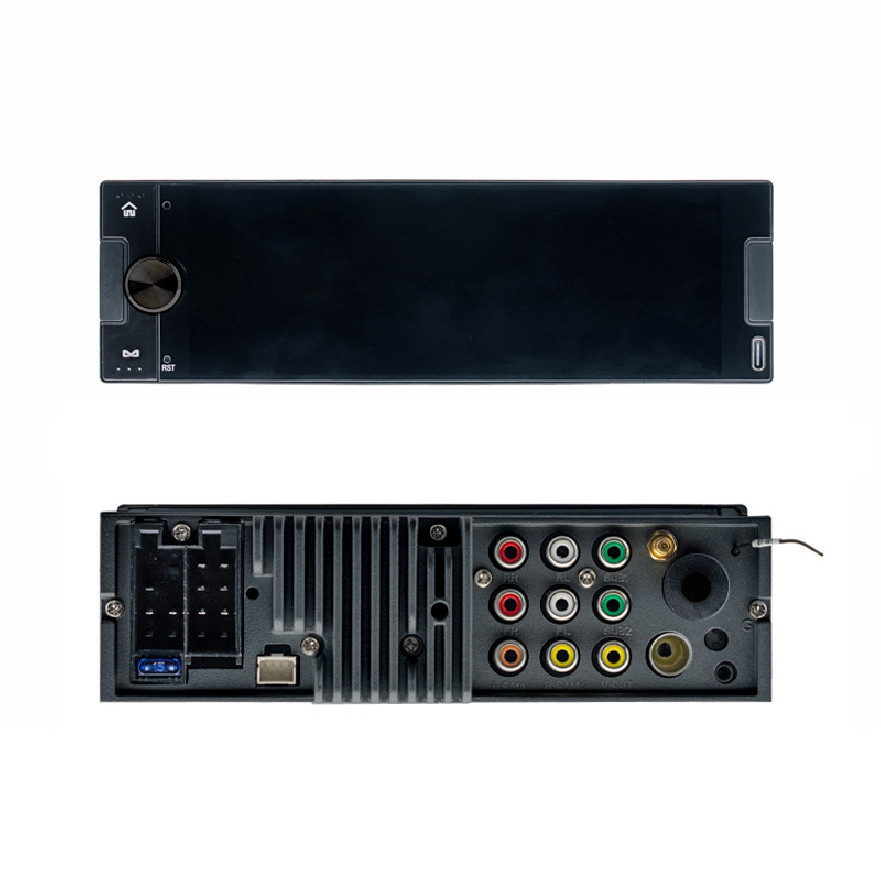

Connections
ISO power supply connector (8-pin)
ISO speaker connector (8-pin)
Accessory connector (8-pin)
RCA (orange) camera input for front camera (CVBS/AHD compatible)
RCA (yellow) camera input for rear camera (CVBS/AHD compatible)
RCA (yellow) video output (CVBS)
RCA (red/white) preamplifier output (front)
RCA (red/white) preamplifier output (rear)
RCA (green/green) preamplifier output (subwoofer) 50/80/120Hz.
RCA AV input (CVBS/AHD) for TV tuner or DVD player
SMB antenna socket for DAB
DIN antenna socket for FM (150 ohms)
3.5 mm jack socket for hands-free microphone

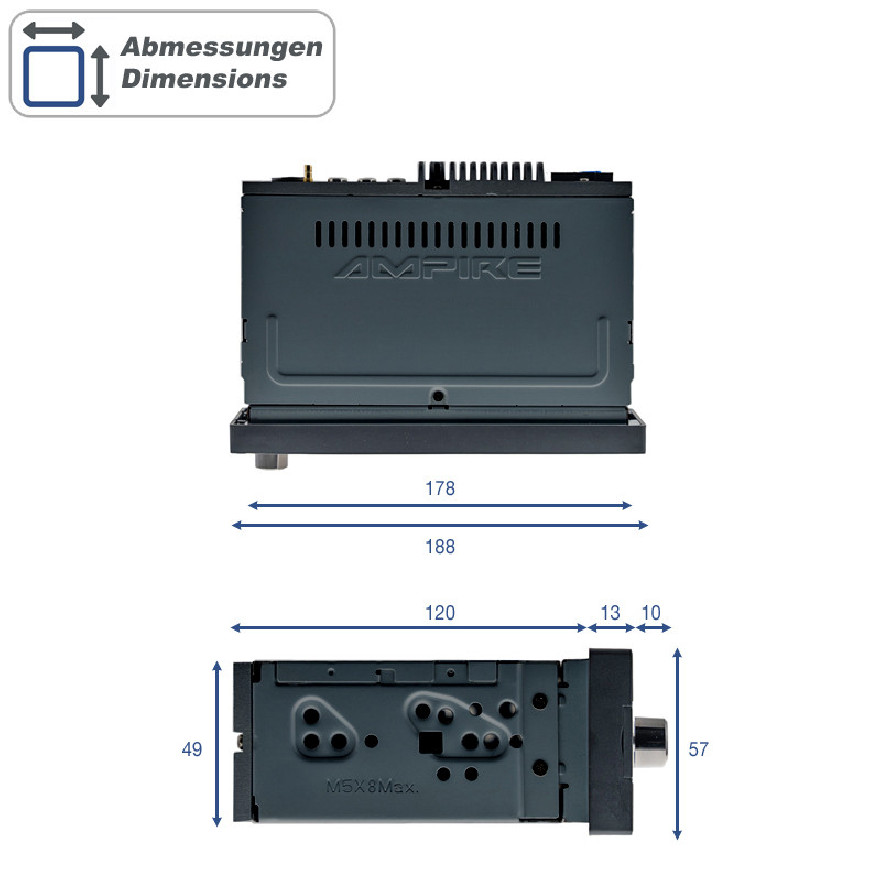

Dimensions
188x57mm (120mm deep)

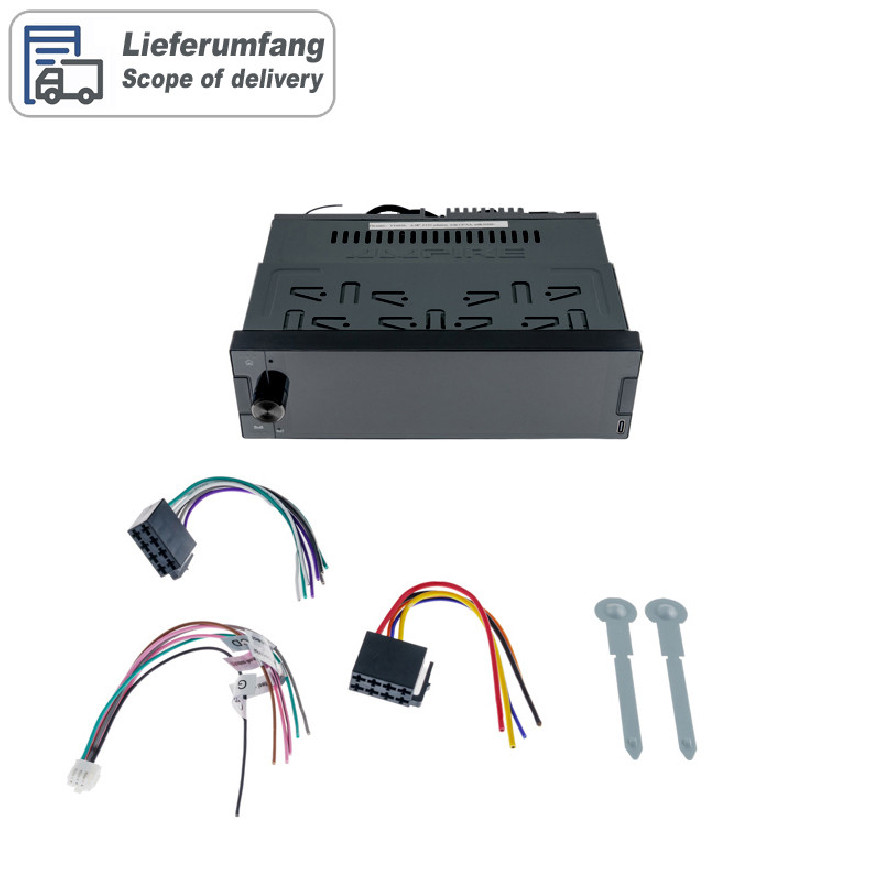

Scope of delivery
1 DIN car radio
3 connection cables
2 removal keys
