Audison Prima APK 570
2 Way system components

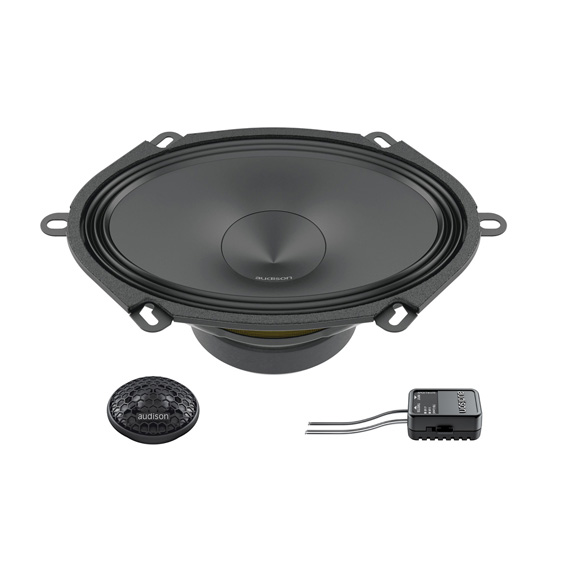

APK 570 systems is ideal for car models with doors equipped to house elliptical speakers featuring 5×7 in. woofers and AP 1 tweeter with dedicated crossovers APCX TW 570. The crossovers are ultra-compact to facilitate their installation, and include an attenuation of the tweeter output level for outstanding fine-tuning. The R&D team optimized the electro-acoustic parameters of the new woofers for installation in the car door, respecting all the characteristics of the Prima speakers, such as the compact size of the basket to facilitate installation. The mechanical cut-off of the woofer cone-dust cap system ensures they can be used without a filter, maximizing efficiency to be easily driven by any type of amplifier. The large voice coil ensures high power handling and impeccable control even in the most aggressive dynamic transients.The double Faston connectors with direct link to the tweeter speed up the speakers connection, always ensuring a perfect contact.
Technical Data
Comp | 2 way System |
Size | 5 x 7 in. Woofer 26 mm (1 in.) Tweeter 46,5 x 37,5 x 20,1 mm (1.83 x 1.47 x 0.8 in.) Crossover |
Power Handling | 100 W Continuous Power 300 W Peak Power |
Impedance | 4 Ω |
Frequency Response | 55 – 20k Hz |
Sensitivity | 93,5 dB/Spl |
