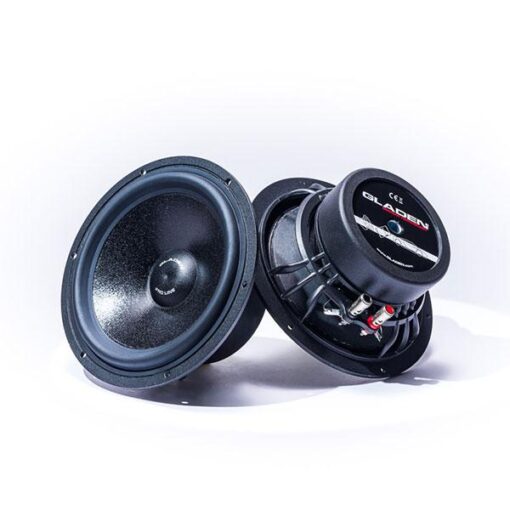

GLADEN PRO 165

GLADEN PRO 165: High-end midbas luidsprekers 165 mm per set
RMS Vermogen: 70 Watt
Impedantie: 3 Ohm

Specifications:

• Cone: Paper (sandcoated)
• Spider: Nomex
• Surround: SBR (rubber)
• Coil former: Fibreglass(GFK)
• Basket: Aluminum
• Dust cap: Fabric

• Name HG-165PRO DC-3 DC
• resistance Rdc 2,7 Ω
• Nominal impedance ZN 3 Ω
• Resonance frequency fs 58,79 HZ
• Voice coil diameter 37 mm
• Mechanical Q factor Qms 10,44
• Electrical Q factor Qes 0,7
• Total Q factor Qts 0,65
• Moving mass Mms 14,88 g
• Effective piston area Sd 135 cm2
• Mechanical resistance Rms 0,53 Kg/s
• Compliance Cms 0,49 mm/N
• Force factor BL 4,61Tm
• Equivalent air volume Vas 12,61 dm3
• Efficiency η 0,35 % SPL 2,83V/1m 92,2 dB
