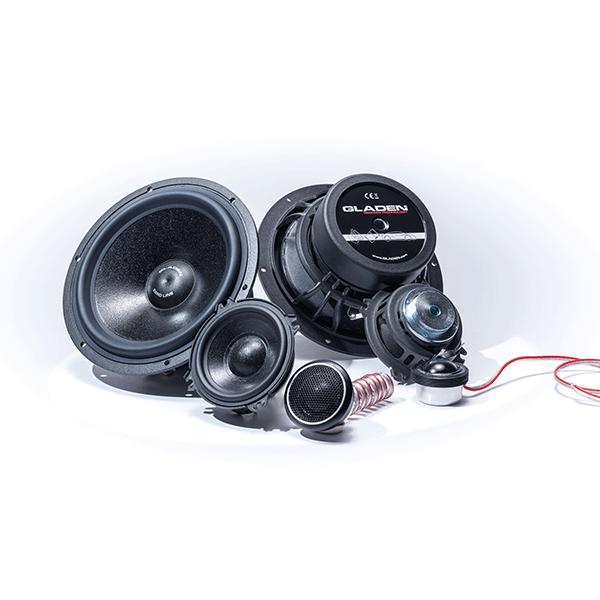

GLADEN PRO 165.3 Actief

GLADEN PRO 165.3 Actief:

• High-End 3-weg luidspreker systeem.
• Voor actieve aansturing (zonder filters).
• Designed & Made in Germany.

Specifications:

• Cone: Paper (sandcoated)
• Spider: Nomex Surround:
• SBR (rubber) Coil former:
• Fibreglass(GFK) Basket:
• Aluminum
• Dust cap: Fabric PRO 165

• Name HG-165PRO DC-3
• DC resistance Rdc 2,7 Ω
• Nominal impedance ZN 3 Ω
• Resonance frequency fs 58,79 HZ
• Voice coil diameter 37 mm
• Mechanical Q factor Qms 10,44
• Electrical Q factor Qes 0,7
• Total Q factor Qts 0,65
• Moving mass Mms 14,88 g
• Effective piston area Sd 135 cm2
• Mechanical resistance Rms 0,53 Kg/s
• Compliance Cms 0,49 mm/N
• Force factor BL 4,61Tm
• Equivalent air volume Vas 12,61 dm3
• Efficiency η 0,35 %
• SPL 2,83V/1m 92,2 dB
