Heavy duty HD bracket camera; 150°; WDR; IR leds; Mic; Heater (NTSC)
€235,00
Wilt u meer informatie over dit product? neem dan contact met ons op! U kunt ons bellen op 079-360 88 98 of mail naar Info@dnbinbouwstation.nl voor het maken van een afspraak.
Heavy duty HD bracket camera; 150°; WDR; IR leds; Mic; Heater (NTSC)
CAM-HD-Q5HD
Features
– 1/3.2″ SONY CMOS HD Color Sensor
– Vibration & impact resistant housing
– All view direction applicable (via rotary key)
– IP69K Waterproof rating
– 150 degrees lens (Wide field of view)
– WDR (Wide Dynamic Range)
– High End Night View (0.0Lux) with 8* LEDs
– IP69K Waterproof rating
– 150 degrees lens (Wide field of view)
– WDR (Wide Dynamic Range)
– High End Night View (0.0Lux) with 8* LEDs
– Built-in microphone located on the back to minimize the wind noise
– Easy switching NORMAL or MIRROR View
– Voltage range (12V-32V)
– Extreme Temp. Durability
– Extreme Temp. Durability
Operating: -30°C ~ 60°C
Storing Temp. : -40°C ~ 80°C
Storing Temp. : -40°C ~ 80°C
– 4-pins Mini connector to RCA
– Front/Rear/Side mounting
– CE-mark
– FCC-mark
– 2 Year warranty & Support
EXCLUSIVE CAMERA FEATURES
Highest Quality lens
High End 1/3.2″ SONY CMOS HD Color Sensor with 1280*960 resolution
Heater
The camera is equipped with heater function.
-Auto heater ON/OFF at 0 degrees
-Warming inside of the camera for working normal
IR leds
The camera is equipped with 8* IR nightvision leds.
-Auto ON/OFF by a brightness detecting sensor
-Progreesive Brightness adjustment
-Wider & Longer illuminating range by a patented designed front glass
Mirror & Unmirror option
The camera is equipped with the magnet for the mirror image view as a factory default. So, remove the magnet for the Normal Image View.
Easy fix
Easy installation via the included bracket
Sunviser
Included adjustabel sunvisor
Metal screw lock
Water- & shock proof 4-pins mini din screw lock connector.
Ignition proof (+15)
It is possible to connect the powersupply to an ignition feed (+15), because we use the highest quality camera.
In this way you are able to watch the camera also in DRIVE gear or via manual selection.
PRODUCT SPECIFICATIONS
| Voltage supply: | 12V |
| Operation voltage: | 12V – 24V |
| Sensor: | 1/3.2 SONY CMOS HD (F2.0) |
| Resolution: | 1280×960 pixels |
| TV line: | 780 TVL |
| Video output: | 1Vp-p,75Ohm |
| Lens: | 150 ° (D) – FOV (Field of View) |
| Connection: | 6-pin metal screw lock |
| Image: | Mirror & Non mirror (via cable adapter) |
| TV system: | NTSC |
| IR led: | Yes – 8* |
| Night vision: | Excellen Nigh view (0 Lux) with LED’s |
| Operating Temperature: | -30°C to +60°C |
| Storing Temperature: | -40°C to +80°C |
| Back Light Compensation: | Automatic |
| Microphone: | High Sensistive C-mic |
| Waterproof: | IP69K |
| WDR (Wide Dynamic Range): | Yes |
| Vibration & impact reistant: | Yes |

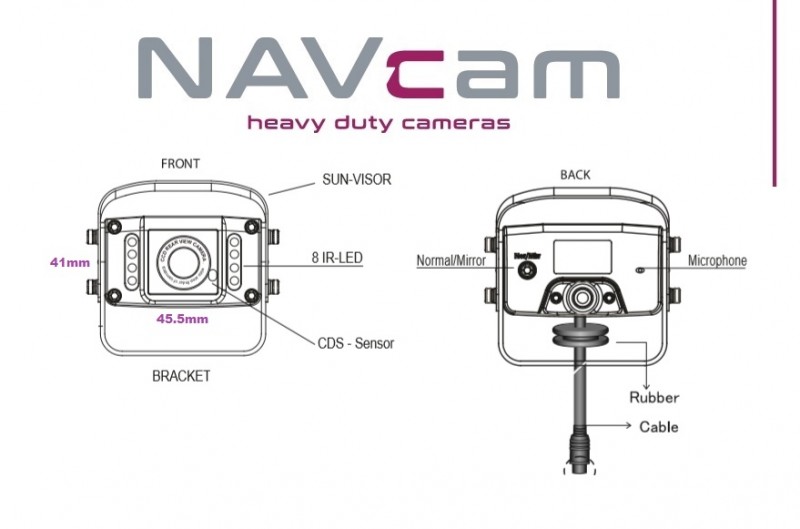

| Sizes: | 41mm x 29mm x 45.5mm (camera only) |
| FFC: | Yes |
| CE: | Yes |
