Heavy duty mini bracket HD camera; front/rear; 1280*960 (NTSC)
€179,00
Wilt u meer informatie over dit product? neem dan contact met ons op! U kunt ons bellen op 079-360 88 98 of mail naar Info@dnbinbouwstation.nl voor het maken van een afspraak.
Heavy duty mini bracket HD camera; front/rear; 1280*960 (NTSC)
CAM-HD-Q2HD
Features
– 1/3″ SONY CMOS HD Color Sensor
– Vibration & impact resistant housing
– IP69K Waterproof rating
– 150 degrees lens
– WDR (Wide Dynamic Range)
– High End Night View (0.03Lux) without LEDs
– IP69K Waterproof rating
– 150 degrees lens
– WDR (Wide Dynamic Range)
– High End Night View (0.03Lux) without LEDs
– Anti-glare & ghost
– Voltage range (10V-24V)
– Extreme Temp. Durability
– Extreme Temp. Durability
Operating: -30°C ~ 60°C
Storing Temp. : -40°C ~ 80°C
Storing Temp. : -40°C ~ 80°C
– 4-pins Mini connector to RCA
– Front & rear mounting wire
– CE-mark
– FCC-mark
– 2 Year warranty & Support
EXCLUSIVE CAMERA FEATURES
SONY CCD
High End 1/3″ SONY CMOS HD Color Sensor with 1280*960 resolution
Front & Rear mounting
Front & Rear mounting wire
Igntion Power proof (+15)
It is possible to connect the powersupply to an ignition feed (+15), because we use the highest quality camera.
In this way you are able to watch the camera also in DRIVE gear or via manual selection.
PRODUCT SPECIFICATIONS
| Voltage supply: | 12V |
| Operation voltage: | 12V – 24V |
| Sensor: | 1/3 SONY CMOS HD (F2.0) |
| Resolution: | 1280×960 pixels |
| TV line: | 650-700 TVL |
| Video output: | 1Vp-p,75Ohm |
| Lens: | 150 ° (Degrees) – FOV: 210 ° (Field of View) |
| Connection: | 4-pins mini to RCA output |
| Image: | Mirror & Non mirror (via wire) |
| TV system: | NTSC |
| IR led: | No |
| Night vision: | Excellen Nigh view (0.3 Lux) without LED’s |
| Operating Temperature: | -30°C to +60°C |
| Storing Temperature: | -40°C to +80°C |
| Back Light Compensation: | Automatic |
| Microphone: | No |
| Waterproof: | IP69K |
| WDR (Wide Dynamic Range): | Yes |
| Vibration & impact reistant: | Yes |

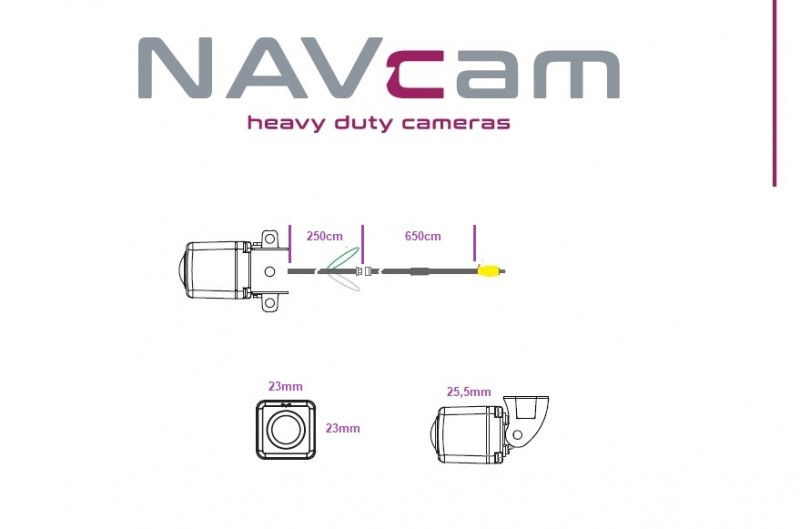

| Sizes: | 23mm x 23mm x 30mm (camera only) |
| FFC: | Yes |
| CE: | Yes |
