Heavy duty mini HD camera substr/top mounting camera; 960*480 (NTSC)
€129,00
Wilt u meer informatie over dit product? neem dan contact met ons op! U kunt ons bellen op 079-360 88 98 of mail naar Info@dnbinbouwstation.nl voor het maken van een afspraak.

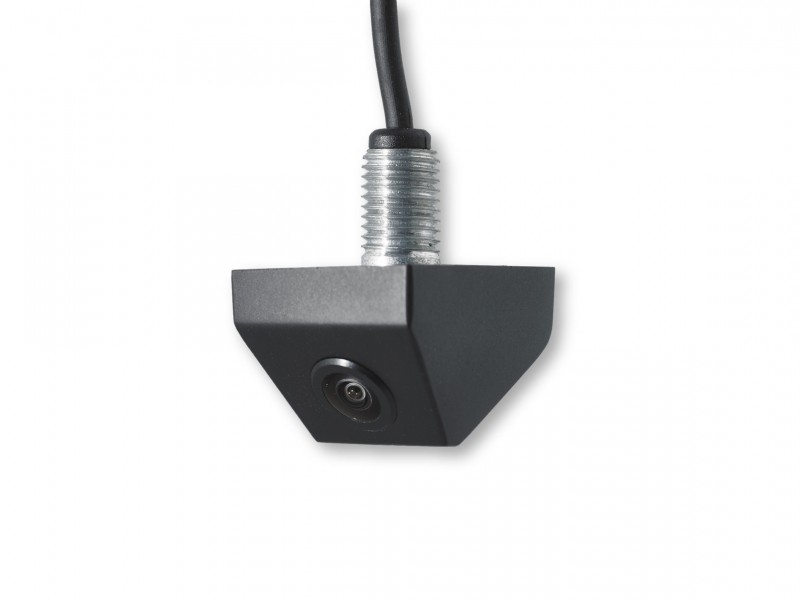

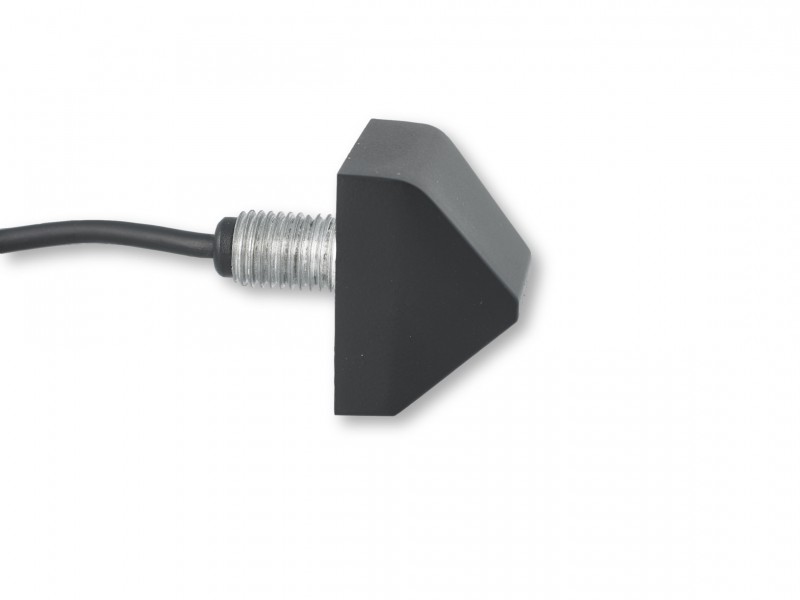

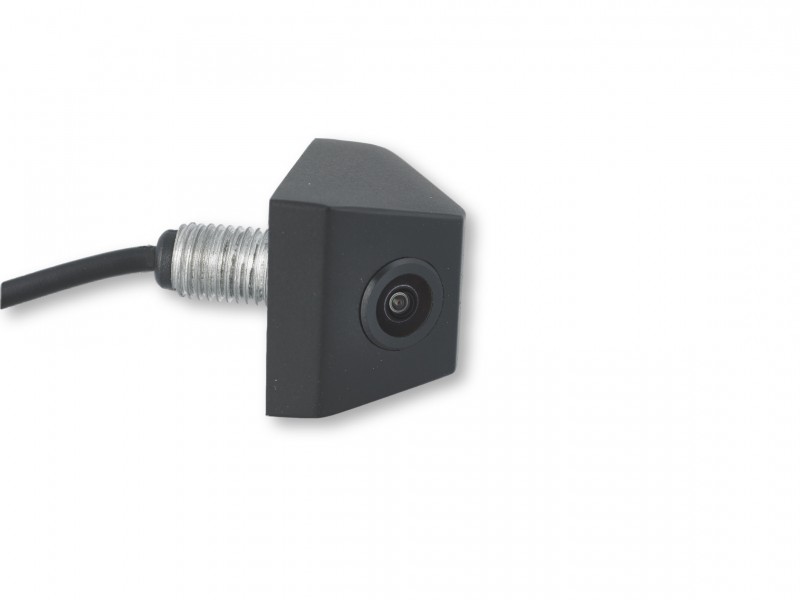

Heavy duty mini HD camera substr/top mounting camera; 960*480 (NTSC)
CAM-HD-Q1HD
Features
– 1/4″ SONY CMOS HD Color Sensor
– Vibration & impact resistant housing
– IP69K Waterproof rating
– 160 degrees lens
– WDR (Wide Dynamic Range)
– High End Night View (0.02Lux) without LEDs
– IP69K Waterproof rating
– 160 degrees lens
– WDR (Wide Dynamic Range)
– High End Night View (0.02Lux) without LEDs
– Anti-glare & ghost
– Voltage range (10V-24V)
– Extreme Temp. Durability
– Extreme Temp. Durability
Operating: -30°C ~ 70°C
Storing Temp. : -40°C ~ 80°C
Storing Temp. : -40°C ~ 80°C
– 4-pins Mini connector to RCA
– Parking guide lines wire (ON / OFF)
– Substructure (vertical) & top (horizontal) mounting wire
– CE-mark
– FCC-mark
– 2 Year warranty & Support
EXCLUSIVE CAMERA FEATURES
SONY CCD
High End 1/4″ SONY CMOS HD Color Sensor with 960*480 resolution
Parking Guide line
Parking guide line ON/OFF wire
Horizontal/Vertical mounting
Horizontal or vertical mounting wire
Igntion Power proof (+15)
It is possible to connect the powersupply to an ignition feed (+15), because we use the highest quality camera.
In this way you are able to watch the camera also in DRIVE gear or via manual selection.
PRODUCT SPECIFICATIONS
| Voltage supply: | 12V |
| Operation voltage: | 10V – 24V |
| Sensor: | 1/4 SONY CMOS HD |
| Resolution: | 960×480 pixels |
| TV line: | 650-700 TVL |
| Video output: | 1Vp-p,75Ohm |
| Lens: | 160 ° (Degrees) |
| Connection: | 4-pins mini to RCA output |
| Image: | Mirror |
| TV system: | NTSC |
| IR led: | No |
| Night vision: | Excellen Nigh view (0.02 Lux) without LED’s |
| Operating Temperature: | -30°C to +70°C |
| Storing Temperature: | -40°C to +80°C |
| Back Light Compensation: | Automatic |
| Microphone: | No |
| Waterproof: | IP69K |
| WDR (Wide Dynamic Range): | Yes |
| Vibration & impact reistant: | Yes |

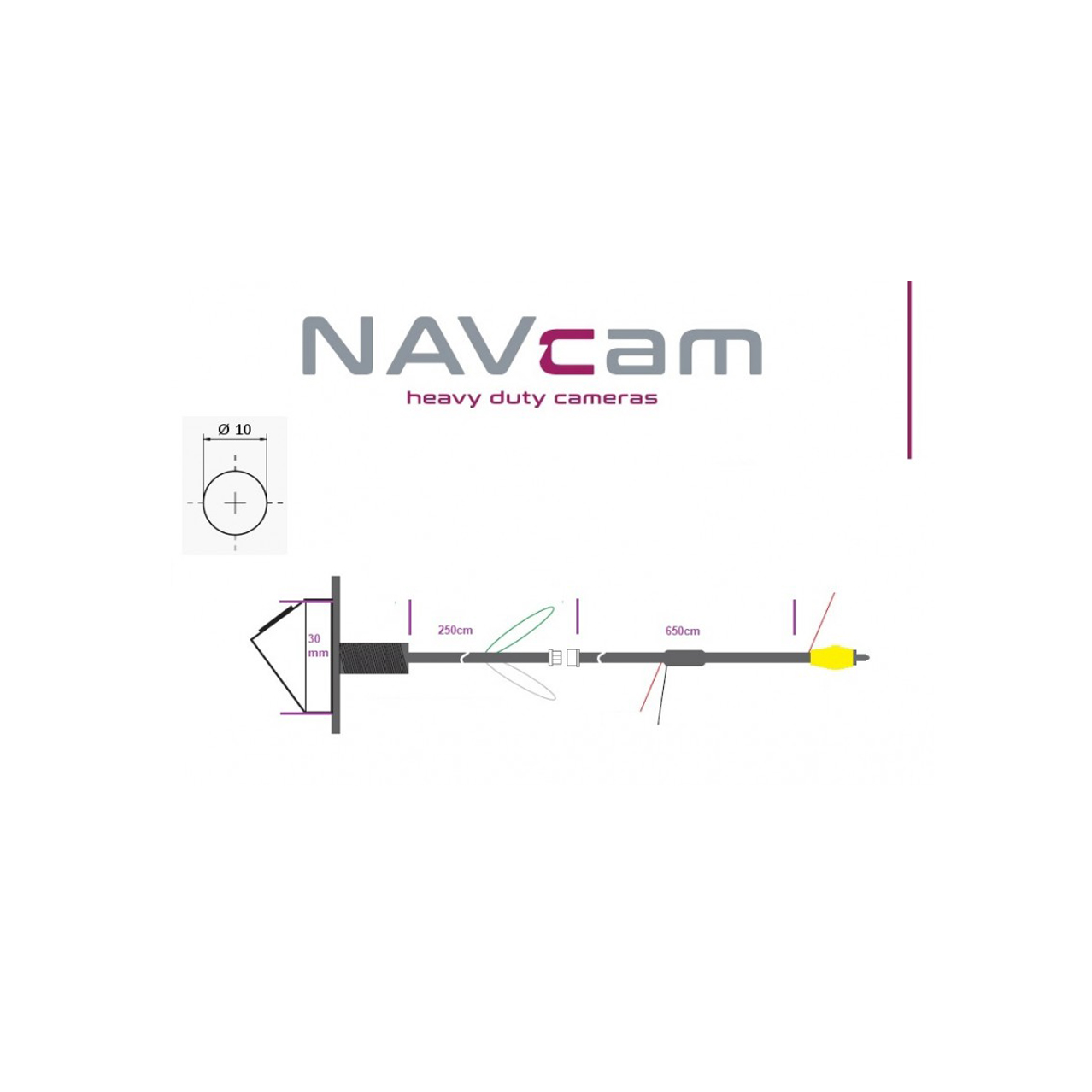

| Sizes: | 28mm x 30mm (camera only) |
| FFC: | Yes |
| CE: |
