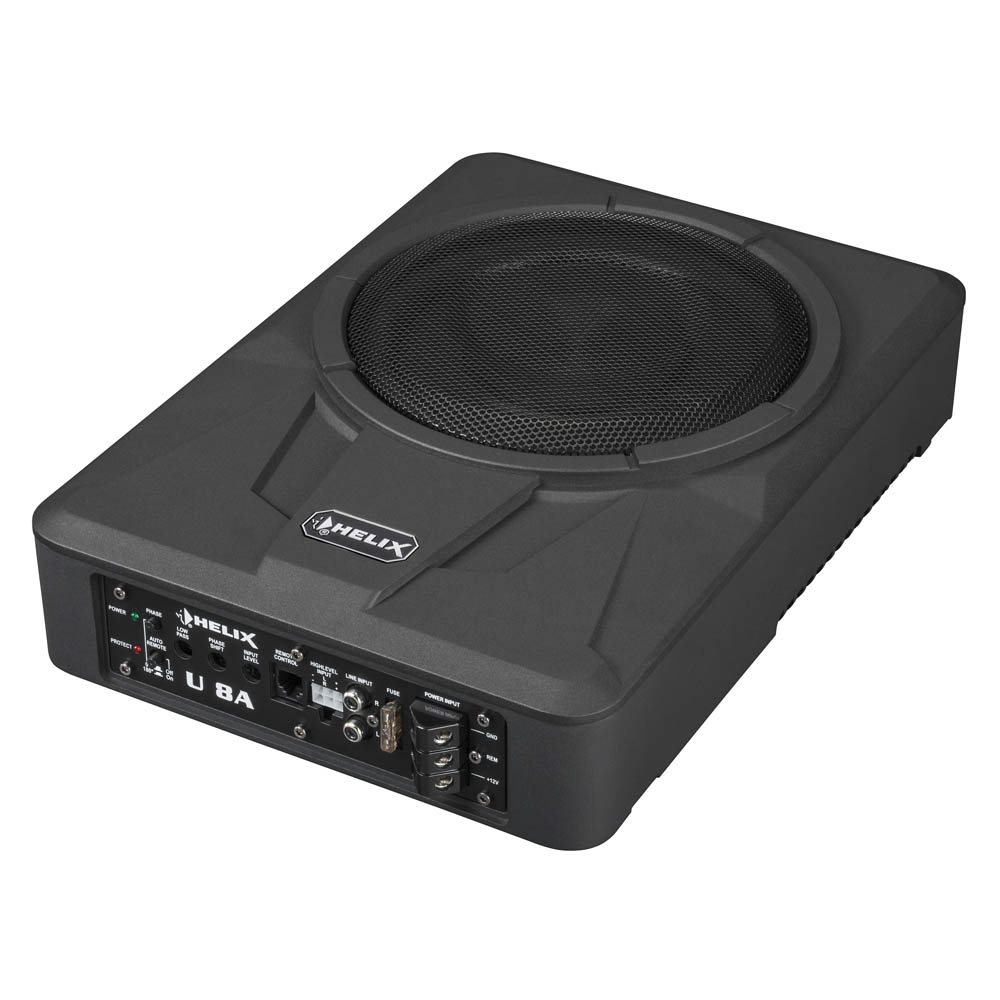

Helix U 8A – Ultra-compacte 8 inch actieve subwoofer
Bass is in the smallest hut – If mounting space in the vehicle is scarce and existing car hifi systems badly need the “extra kick” in the low frequency range without great effort, the new HELIX active subwoofers U 10A and U 8A are the right choice. Driven by powerful, integrated Class AB amplifiers with 180 W RMS, the heavy-duty drivers with their rock-solid aluminum cones and heat-resistant voice coils easily transform the amplifier power into punchy bass. Thanks to comprehensive setting options like the adjustable, high-slope lowpass filter and particularly sensitive phase control, the low frequency reproduction can be perfectly adapted to the acoustic conditions inside the vehicle. Equipped with a 2-channel highlevel input with automatic turn on function as well as a 2-channel lowlevel RCA input a seamless integration is guaranteed. And thanks to the especially shallow cabinet design the installation will be a no-brainer, especially if space is extremely limited – these small “bass boosters” may even fit under the seats, for example.
Features
- Powerful, integrated Class AB amplifier with 180 W RMS power for punchy bass
- Solid and low-resonance diecast aluminium housing for precise bass reproduction and optimum heat dissipation
- Heavy-duty 8” / 200 mm chassis with extremely stable aluminum cone for compression-free transformation of the amplifier power into sound pressure
- Integrated Class AB amplifier with 180 W RMS power
- Continuously adjustable, steep-flanked lowpass filter
- Particularly sensitive adjustment of the phase
- Cable remote control for volume adjustment included in delivery
- Especially flat housing design – ideal for space-saving under-seat mounting
Technical data
Power RMS / max. | 180 / 360 Watts |
Woofer diameter | 8″ / 200 mm |
Inputs | 2 x RCA / Cinch 2 x Highlevel speaker input 1 x Remote In 1 x Remote control input |
Input sensitivity | Highlevel 1.2 – 20 Volts RCA / Cinch 0.3 – 4 Volts |
Input impedance RCA / Cinch | 10 kOhms |
Input impedance highlevel | 33 Ohms |
Frequency response | 45 – 150 Hz |
Lowpass | 50 – 150 Hz adjustable |
Subsonic | 16 Hz / 12dB/Oct. |
Phase switch | 0° / 180° switchable |
Phase shift | 0 – 180° adjustable |
Slope lowpass | 24 dB/Oct. |
Signal-to-noise ratio | > 92 dB (A-weighted) |
Distortion (THD) | < 0.4 % |
Operating voltage | 10.5 – 16 Volts |
Fuse | 25 A Maxi-fuse (APX) |
Additional features | Diecast aluminum housing, cable remote control for volume adjustment, Auto Remote switch |
Dimensions (H x W x D) | 78 x 245 x 345 mm / 3.07 x 9.65 x 13.58″ |
