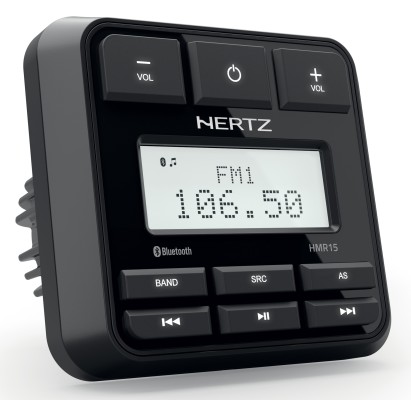

HMR 15
TRENDY DESIGN ONBOARD
DISPLAY | 2.8” DOT Matrix display |
PEAK POWER @ 4 Ω | 4 x 50 W |
FRONT PANEL IP RATING | IP66 |
LINE OUTS | 2x L+R (Front and Rear) |
SUBWOOFER OUT (RCA) | 1x L+R (LPF: 80, 120,160 Hz) |
AUX INPUT (RCA) | 1x L+R |
EQUALIZER | BASS-TREBLE |
EQ. PRESET | 3 |
CAMERA IN | – |
BATTERY VOLTAGE GAUGE | – |
TUNER | AM/FM (EU/US) |
USB | Yes (1A) |
IPOD/IPHONE | – |
DAB+ Ready | – |
SIRIUSXM READY | – |
NMEA 2000 READY | – |
BLUETOOTH | 5.0 Audio streaming |
REMOTE CONTROL | HMC U1 (up to 3) |
Unit Size mm (in.) | W 126 (4.960) x H 114 (4.488) x D 96.5 (3.799) |
Mounting Hole size mm (in.) | Ø 89,5 (3.52) |
Mounting Depth mm (in.) | 72 (2.83) |
Mounting Method | Panel mount (4 screws); U-Bracket |
