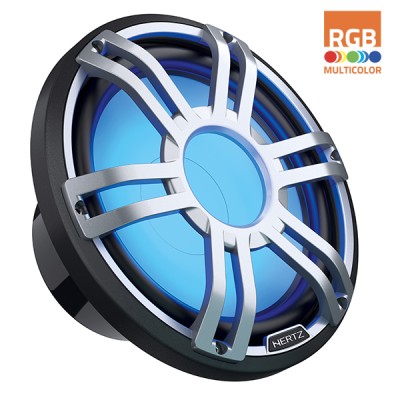

HMS 12 S4-LD-G
300 (12) mm (in.) | 191 (7.52) mm (in.) | 4Ω sport led subwoofer | 1000 W | 4 Ohm | Single Voice Coil
| Size mm (in.) | 300 (12) |
| Power Handling – Continuous W | 500 |
| Power Handling – Peak W | 1000 |
| Impedance Ohm | 4 |
| Depth mm (in.) | 191 (7.52) |
| Voice Coil Type | single |
| No Filter Component | 4Ω SPORT LED SUBWOOFER |
| Voice Coil Ø | 65.5 (2.6) |
| Magnet size D x d x h mm (in.) | 156 x 80 x 40 (6.14 x 3.15 x 1.57) |
| Weight of one component kg (lb.) | 7,6 (16.8) |
| Magnet | High density flux ferrite |
| Cone | Polypropylene with UV inhibitors |
| D mm | 300 |
| Xmax mm | 19 |
| Re Ohm | 3.3 |
| Fs Hz | 30 |
| Le mH | 0.62 |
| Vas I | 104.7 |
| Mms g | 112 |
| Cms mm/N | 0.247 |
| BL T*m | 8 |
| Qts | 1 |
| Qes | 1.1 |
| Qms | 12.9 |
| Spl dB | 89.5 |
