Hertz Marine HMX 8-TW – 8″ 4Ohm MARINE COAX SET TOTAL WHITE
224 (8.8) mm (in.) | 123 (4.84) mm (in.) | Hi-end Coax | 200 W | 4 Ohm

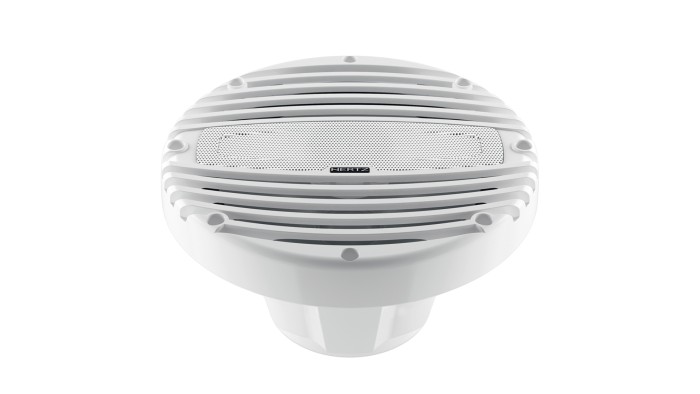

HMX 8 TW hi-performance marine coaxial speakers, also available in the black option HMX 8 TC, features a tone-on-tone stainless steel front mesh matching the grille colour. Coaxial speaker is optimized to perform in infinite baffle, with a solid bass and an outstanding output. The tweeter feature an acoustic lens optimized for best off-axis dispersion and maximized SPL. The UV resistant polypropylene cone co-molded with Santoprene rubber surround together with the basket and grille injected with a Hi-temperature and UV resistant polymer neutralize water, dust and mud. The aramid fiber spider with silicone-insulated lead wires ensures durability and constant performance over time. The high-excursion mobile equipment is driven by a massive magnetic group, to deliver high undistorted sound pressure.
Component | HI-END COAX |
Size mm (in.) | 224 (8.8) |
Power Handling – Continuous W | 100 |
Power Handling – Peak W | 200 |
Impedance Ohm | 4 |
Depth mm (in.) | 123 (4.84) |
Tweeter diaphragm mm (in.) | 36 (1.4) |
Woofer Voice Coil Ø mm (in.) | 32 (1.4) |
Tweeter Voice Coil Ø mm (in.) | 20 (0.8) |
Frequency Response Hz | 45 ÷ 25k |
Woofer Magnet size D x d x h mm (in.) | 90 x 40 x 20 (3.54 x 1.57 x 0.79) |
Tweeter Magnet size D x h mm (in.) | 19,7 x 3 (0.78 x 0.12) |
Weight of one speaker kg (lb.) | 1,66 (3.66) |
Woofer Magnet | High density flux ferrite |
Tweeter Magnet | Neodymium |
Cone | Polypropylene with UV inhibitors |
Dome | PEI |
Xmech mm (in.) | ±8,5 (0.33) |
D mm | 174 |
Re Ohm | 3,1 |
Fs Hz | 50 |
Le mH | 0,52 |
Vas I | 29,46 |
Mms g | 27,3 |
Cms mm/N | 0,37 |
BL T*m | 6,6 |
Qts | 0,58 |
Qes | 0,61 |
Qms | 11 |
Spl dB | 91 |
