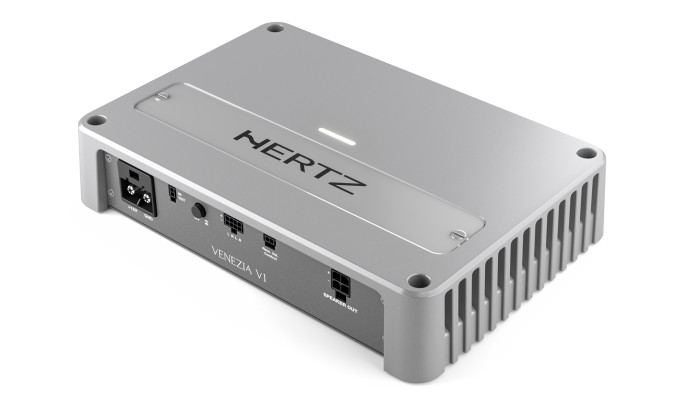

VENEZIA V1 24V
Ch: 1 | 1260 W
Channels | 1 |
POWER SUPPLY | |
Power supply voltage | 22 ÷ 33 VDC |
ldling current (power ON/OFF): | 1 A / 0.04 mA |
Consumption@ 1Ω, 28.8 VDC (Max Musical Power): | 27 A |
Remote In: | 7 ÷ 33 VDC – 1 mA |
Remote Out voltage: | 14 ÷ 33 VDC |
AMPLIFIER STAGE | |
Distorsion – THD (100Hz @ 4Ω): | <0,02% |
Bandwidth: | 10 ÷ 500 Hz |
S/N Ratlo (A welghted @ 1 V): | 102 dB |
Damping factor (100Hz @ 4Ω) | 500 |
Pre-ln sensitivity: | 0.2 ÷ 5 VRMS |
Pre-ln impedance: | 10kΩ |
Load impedance (MIN) | 1 Ω |
Adjustable Crossovers | yes |
OUTPUT POWER (RMS) @ 28.8 VDC, THD 1% | |
1Ch | 700 W (4Ω) |
1Ch | 1260 W (2Ω) |
1Ch | 1260 W (1Ω) |
Total Power | 1260 W |
lnputs: | PRE IN |
Pre Out: | Hi-Pass filter 50 ÷ 250 Hz @ 12 dB/Oct |
Filters: | Yes |
By-pass | Yes (Full) |
Lo-Pass: | 50 ÷ 500 Hz @ 24 dB/Oct |
Phase (adjust): | (0 ÷ 180°) |
Subsonic: | 25 Hz @ 24dB/Oct. |
Bass boost 50 Hz (adjust): | (0 ÷ 12) dB |
