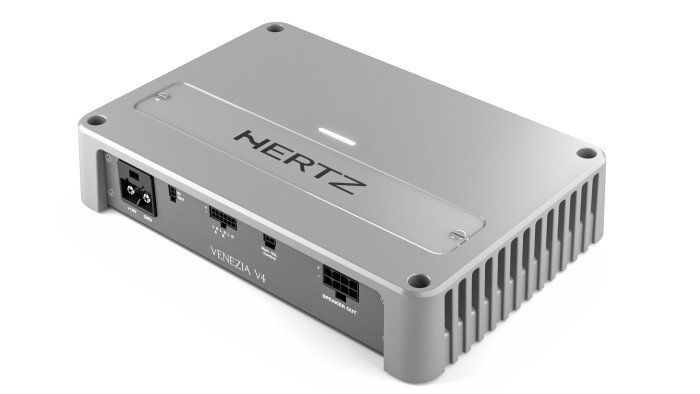

VENEZIA V4
Ch: 4 – 3 – 2 | 1160 W
Channels | 4 – 3 – 2 |
POWER SUPPLY | |
Power supply voltage | 9 ÷ 16 VDC |
ldling current (power ON/OFF): | 1.6A / 0.04 mA |
Consumption@ 1Ω, 14.4 VDC (Max Musical Power): | 48 A |
Remote In: | 7 ÷ 15 VDC – 1 mA |
AMPLIFIER STAGE | |
Distorsion – THD (100Hz @ 4Ω): | <0,06% |
Bandwidth: | 10 ÷ 42 kHz |
S/N Ratlo (A welghted @ 1 V): | 102 dBA |
Damping factor (100Hz @ 4Ω) | 130 |
Pre-ln sensitivity: | 0.2 ÷ 5 VRMS |
Pre-ln impedance: | 10kΩ |
Load impedance (MIN) @4Ch: @3Ch: @2Ch: |
2 Ω 2 Ω + 2 Ω + 4 Ω 4 Ω |
Adjustable Crossovers | yes |
OUTPUT POWER (RMS) @ 14.4 VDC, THD 1% | |
4Ch | 160 W x 4 (4Ω) |
4Ch | 290 W x 4 (2Ω) |
3Ch | 160 W x 2 (4Ω) + 580 W x 1 (4Ω) |
3Ch | 290 W x 2 (2Ω) + 580 W x 1 (4Ω) |
2Ch | 580 W x 2 (4Ω) |
Total Power | 1160 W |
lnputs: | PRE IN |
Pre Out | Full range |
A Ch: | |
A Ch. MONO (on/off): | Yes |
By-pass: | Yes (Full) |
Hi-Pass : | 50 ÷ 4k Hz @ 12dB/Oct |
Lo-Pass: | 50 ÷ 4k Hz @ 12dB/Oct |
B Ch: | Yes |
B Ch. MONO (on/off): | Yes |
By-pass: | Yes (Full) |
Hi-Pass: | 50 ÷ 4k Hz @ 12dB/Oct |
Lo-Pass: | 50 ÷ 4k Hz 12@ dB/Oct |
Bass boost 50 Hz (adjust): | (0 ÷ 12) dB |
