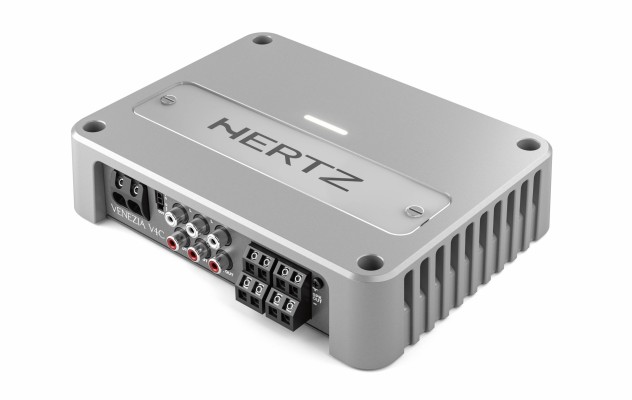

VENEZIA V4C
Ch: 4 – 3 – 2 | 760 W
Channels | 4 – 3 – 2 |
POWER SUPPLY | |
Power supply voltage | 9 ÷ 16 VDC |
ldling current (power ON/OFF): | 1 A / 0.04 mA |
Consumption@ 1Ω, 14.4 VDC (Max Musical Power): | 21 A |
Remote In: | 7 ÷ 15 VDC – 1 mA |
AMPLIFIER STAGE | |
Distorsion – THD (100Hz @ 4Ω): | <0,06% |
Bandwidth: | 10 ÷ 42 kHz |
S/N Ratlo (A welghted @ 1 V): | 102 dB |
Damping factor (100Hz @ 4Ω) | 150 |
Pre-ln sensitivity: | 0.2 ÷ 5 VRMS |
Load impedance (MIN) @4Ch: @3Ch: @2Ch: |
2 Ω + 2 Ω + 4 Ω 2 Ω 4 Ω |
Weight (kg/lb): | 2.62 / 5.77 |
Adjustable Crossovers | yes |
OUTPUT POWER (RMS) @ 14.4 VDC, THD 1% | |
4Ch | 110 W x 4 (4Ω) |
4Ch | 190 W x 4 (2Ω) |
3Ch | 110 W x 2 (4Ω) + 380 W x 1 (4Ω) |
3Ch | 190 W x 2 (2Ω) + 380 W x 1 (4Ω) |
2Ch | 380 W x 2 (4Ω) |
Total Power | 760 W |
lnputs: | PRE IN |
Pre Out FULL range (FRONT) | Yes |
FRONT Ch. filters FULL: | Yes |
Hi-Pass : | 50 ÷ 4k Hz @ dB/Oct |
Lo-Pass: | 50 ÷ 4k Hz @ dB/Oct |
REAR Ch. filters FULL: | Yes |
Hi-Pass: | 50 ÷ 4k Hz @ dB/Oct |
Lo-Pass: | 50 ÷ 4k Hz @ dB/Oct |
FRONT Ch. MONO (on/off): | Yes |
REAR Ch. MONO (on/off): | Yes |
BOOST 50 Hz (adjust): | (0 ÷ 12) dB |
