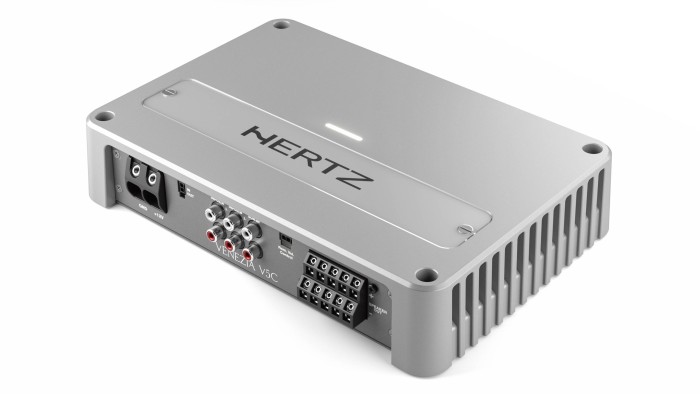

VENEZIA V5C
Ch: 5 – 3 | 1010 W
Channels | 5 – 3 |
POWER SUPPLY | |
Power supply voltage | 9 ÷ 16 VDC |
ldling current (power ON/OFF): | 1.7 A / 0.05 mA |
Consumption@ 1Ω, 14.4 VDC (Max Musical Power): | 47 A |
Remote In: | 7 ÷ 15 VDC – 1 mA |
AMPLIFIER STAGE | |
Distorsion – THD (100Hz @ 4Ω): | <0,05% |
Bandwidth: | 10 ÷ 42 kHz |
S/N Ratlo (A welghted @ 1 V): | 100 dB |
Damping factor (100Hz @ 4Ω) | >130 |
Pre-ln sensitivity: | 0.2 ÷ 5 VRMS |
Pre-ln impedance: | 10 kΩ |
Load impedance (MIN) @5Ch: @3Ch: |
2Ω 4Ω + 4Ω + 2Ω |
Weight (kg/lb): | 3.72 / 8.2 |
Adjustable Crossovers | yes |
OUTPUT POWER (RMS) @ 14.4 VDC, THD 1% | |
5Ch | 80 W x 4 (4Ω) + 330 x 1 (4Ω) |
5Ch | 115 W x 4 (2Ω) + 550 W x 1 (2Ω) |
3Ch | 230 W x 2 (4Ω) + 330 W x 1 (4Ω) |
3Ch | 230 W x 2 (4Ω) + 550 W x 1 (2Ω) |
Total Power | 1010 W |
lnputs: | A Ch. Pre in B Ch. Pre in Sub Ch. Pre in |
Pre Out: | No |
A Ch. filters: | Yes |
By-Pass | Yes |
Hi-Pass : | 50 ÷ 500 Hz / 500 Hz ÷ 5 kHz @ 12 dB/Oct |
B Ch. filters: | |
By-pass: | Yes |
Hi-Pass: | 50 ÷ 500 Hz @ 12 dB/Oct |
Band-Pass: | 50 ÷ 500 Hz / 500 Hz ÷ 5 kHz @ 12 dB/Oct |
Sub Ch. filters: | |
By-pass: | No |
Low-Pass: | 50 ÷ 250 Hz @ 24 dB/Oct |
Phase (adjust°): | (0 ÷ 180°) |
Subsonic: | 25 Hz @ 24 dB/Oct |
Boost 50 Hz (adjust): | (0 ÷ 12) dB |
