HMP 4D
€269,00
MARINE & POWERSPORTS 4 CHANNEL AMPLIFIER
Wilt u meer informatie over dit product? neem dan contact met ons op! U kunt ons bellen op 079-360 88 98 of mail naar Info@dnbinbouwstation.nl voor het maken van een afspraak.

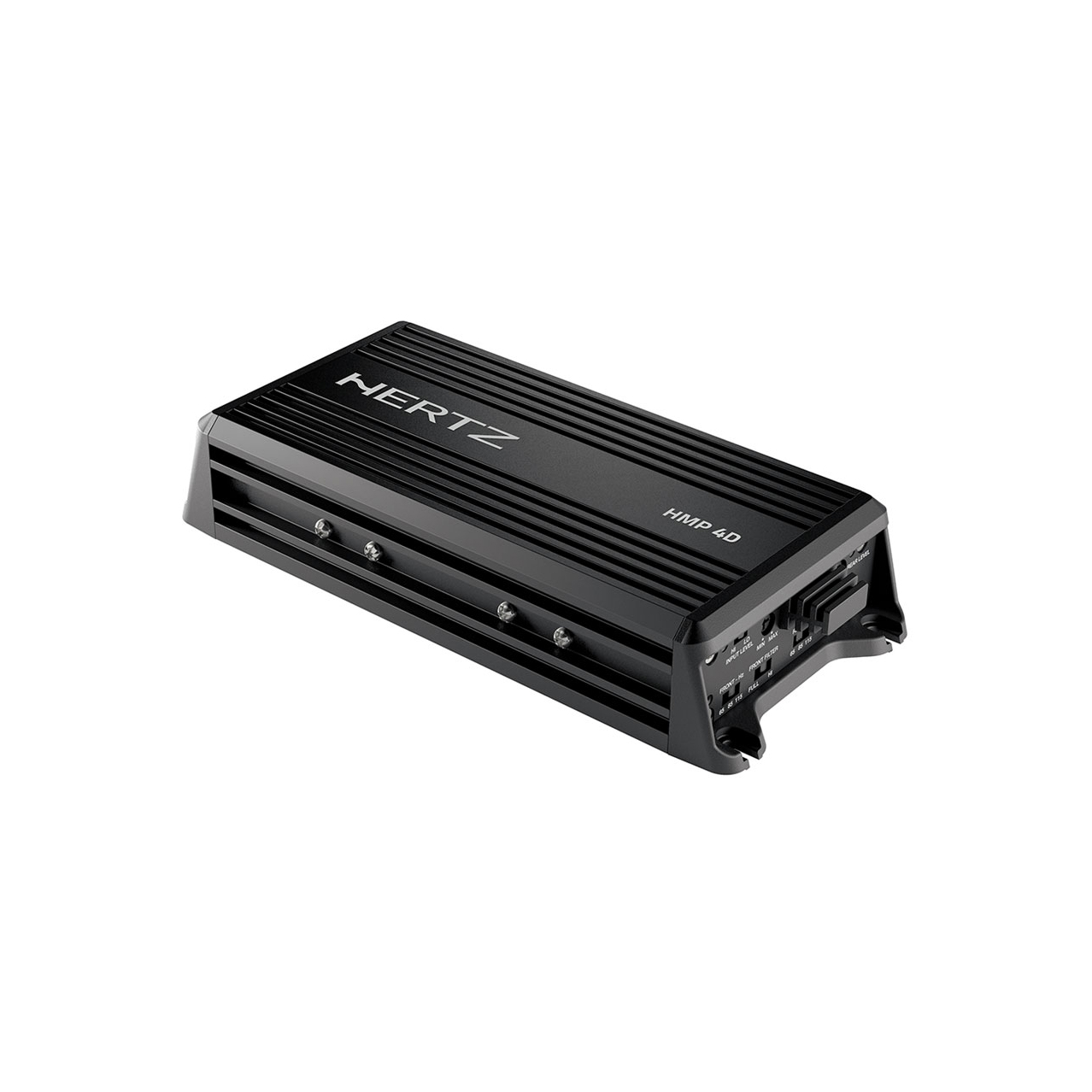

HMP 4D
MARINE & POWERSPORTS 4 CHANNEL AMPLIFIER
Thanks to the ultra-compact cast-aluminium chassis (IP64 rated), the HMP 4D amplifier is nature-proof, being the ideal choice for UTV/ATV/motorcycle installations. It features an incredible power/size ratio and an easy setup thanks to the integrated crossover filter. The Front End section features a complete and bypassable crossover system, providing full system design flexibility with or without external processors, offering the user endless connection possibilities with any source. Inputs feature a special balanced circuitry, ensuring high rejection against electro-magnetic interferences, for noise-free results.
Data table
| Channel mode | 4 – 2 |
| Output Power (RMS) @ 14.4 VDC |
60 W x 4 (4 Ω) 75 W x 4 (2 Ω) 150 W x 2 (4 Ω) |
| Filters Bypass Hi-Pass Lo-Pass |
Yes 65-85-115 Hz @ 12 dB/Oct. 65-85-115 Hz @ 12 dB/Oct. |
| Distortion – THD (100Hz @ 4Ω) |
0.2 % |
| S/N Ratio (A weighted @ 1V) |
95 dB |
| Damping factor (100Hz @ 4Ω) |
45 |
| Size W x D x H mm (in.) |
223 x 100,5 x 43,6 / 8.77 x 3.95 x 1.71 |
Input / Output
Technologies
- IP64 CERTIFICATION
- WATER JET TESTEDThe protection grade IP64 define all the Hertz Marine products as totally protected against water jets of different entities, making them highly performant in the marine environment.
- CORROSION PROTECTIONElectronics components corrosion caused by exposure in wet environments is totally neutralized by the use of dedicated marine grade (epoxy coated) PCB boards.
- SALT FOG TESTEDTo satisfy the standards required by ASTM-B117, Hertz Marine products are tested with massive salt fog spray to ensure a complete resistance to corrosion, typical of this atmospheric agent.
