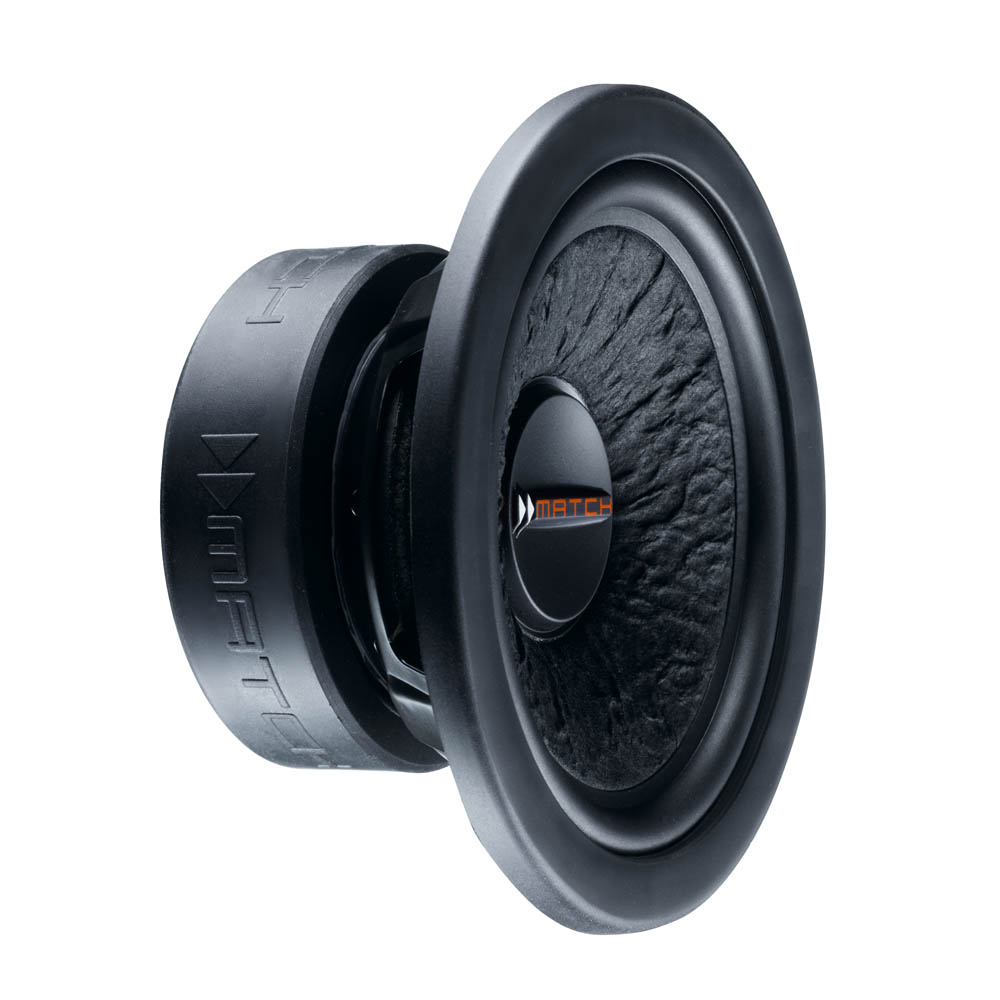

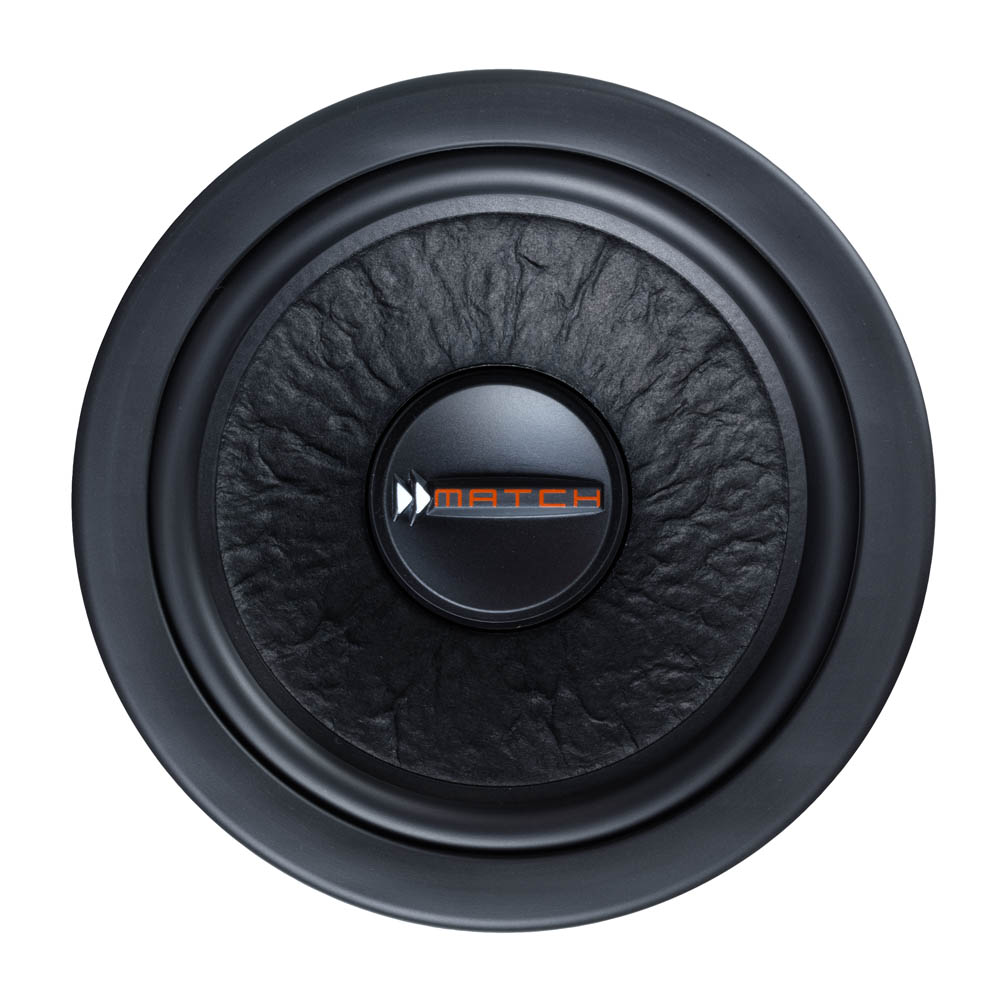

Match PP 72W-D -16,5 cm subwoofer 2 x 2 Ohm incl. terminal
You didn’t find the type of enclosure sub you are looking for? – If none of the MATCH Plug & Play enclosure subs fits in your car with respect to shape and / or size, then you have the chance to build your “personalized” version by yourself. Therefore, we offer the single woofers of our Plug & Play series, which are 100 % identical to the drivers that are used in the pre-loaded variants. As long as you choose the net volume and port tuning frequency according to the installation instructions, we guarantee the same acoustical performance as our “standard” subwoofers.
Features
- Extremely stiff, hand-scooped paper cones
- High-temperature resistant voice coils with large winding heights
- Double ventilated voice-coils for minimum compression effects
- Powerful magnets for compact-sized vented enclosures
- Optimized for the perfect interaction with MATCH Plug & Play amplifiers
- Connection terminal for MATCH subwoofer cable (PP-SC) included in delivery
Technical data
Power RMS / max. | P | 100 / 200 Watts |
Impedance | Z | 2 x 2 Ω |
DC resistance | Re | 2 x 1.6 Ω |
Resonance frequency | Fs | 53 Hz |
Mechanical Q factor | Qms | 3.30 |
Electrical Q factor | Qes | 0.41 |
Total Q factor | Qts | 0.37 |
Compliance | Cms | 350 µm/N |
Equivalent air volume | Vas | 7.9 L |
Force factor | B*I | 8 Tm |
Efficiency 1 W / 1 m | SPL | 87 dB |
Cone area | Sd | 125 cm² |
Moving mass | Mms | 25 g |
Cone material | Hand-scooped paper cone | |
Mechanical resistance | Rms | 2.5 kg/s |
Voice coil diameter | ø | 38.8 mm |
Voice coil winding height | 16 mm | |
Max. linear excursion | Xmax | +/- 5.0 mm |
Outer diameter | ø | 157.5 mm / 6.20″ |
Installation diameter | ø | 133 mm / 5.24″ |
Installation depth | 79 mm / 3.11″ | |
Recommended enclosure volumes | For two subwoofers | |
Sealed box | Not recommended | |
Net volume | – | |
Lower limiting frequency (-3dB) | – | |
Vented box | ||
Net volume | 15 L | |
Port diameter | ø | 70 mm / 2.76″ |
Port area | 38 cm² | |
Port length | 20 cm / 7.87″ | |
Port tuning frequency | Fb | 50 Hz |
Lower limiting frequency (-3dB) | 48 Hz |
