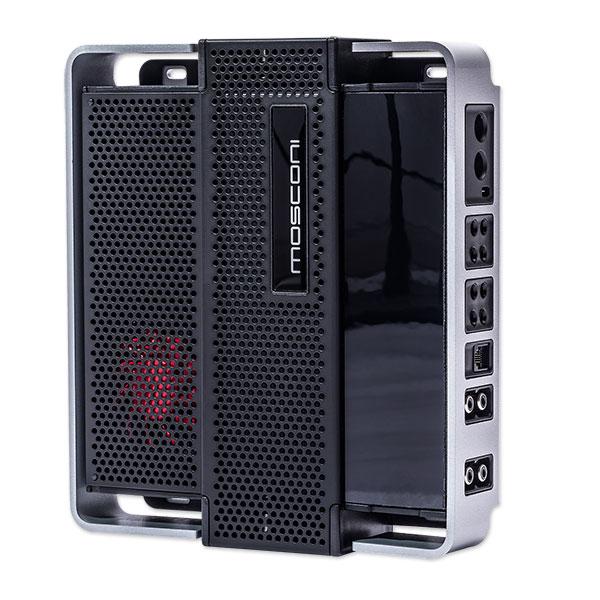

Mosconi PRO 1|10

Mosconi PRO 1|10:

High-End klasse-D Mono versterker
RMS Vermogen SOUND Mode: 1 x 524 Watt @ 4 Ohm, 1 x 830 Watt @ 2 Ohm
RMS Vermogen POWER Mode: 1 x 669 Watt @ 4 Ohm, 1 x 974 Watt @ 2 Ohm
High-Level Input met Auto-sense power-on
Bas remote (RTC) ready

SPECIFICATION

• POWER RATING: 670 Watt @ 4 Ohm < 1% THD+N
• SN RATIO: >80 dBA (DDSP) [reference: 1 Watt into 4 Ohm]
• Power efficiency (4 Ohm / 1% THD / 1kHz): > 75 %
• THD (4 Ohm / 100Wrms / 1kHz): < 0.05 %
• DC-DC converter typology / Conversion frequency: Unregulated Push-Pull / 50 kHz
• Supply voltage range operation: 10 V ÷ 16 V (Absolute maximum) / 11 V ÷ 14.4 V (Recommended)
• Power-on/Power-off Voltage Threshold: 9 V / 7.5 V
• Mute delay time: 4 sec.
• Max output offset voltage: ±15 mV
• Standby current: < 1 mA (typical)
• Normal Quiescent consumption (Th < 80°): 1.0 A
• Overheating Mute consumption (80° < Th < 95°): 0.5 A
• Thermal Protection consumption (Th > 95°): 0.15 A
• Bandwidth (-3dB ÷ 1 Watt): 13 Hz ÷ 29 kHz
• Input sensitivity (600 Wrms /4 Ohm): 0.14 V ÷ 5.9 V (3.1 V in DDSP mode)
• Input impedance @ 1 kHz (STEREO input): 15 KOhm (LL) / 47 Ohm (HL)
• S/N ratio (AP filter 10Hz÷22kHz / DDSP / 600Wrms ref.): 108 dB
• Xover functions: LOW PASS 43 ÷ 200Hz [24 dB/oct]
• Special features: DDSP – Direct DSP (bypass all the preamplifier circuitry but the differential input interface)
  • HL/LL – High Level / Low Level selectable input
  • Single Input capability (RCA bypass capability)
  • Autosense  (BTL mode only)
  • Controlled via uC – Internally controlled via Atmel Processor
• Thermal cutoff Threshold: 80 °C (±5°C)
• ProSPEED® Fan Controller Threshold: 50°C (±5°C)
• Damping factor @ 100 Hz/1 kHz/10kHz – 10 Watt ref: > 200 / > 200 / > 100
• Minimum allowed load: 2 Ohm
• Suggested fuse: 80 A (Internal)
• Size (mm): 235 / 205 / 55
• Weight: 2,5 kg
