DESCRIPTION
General

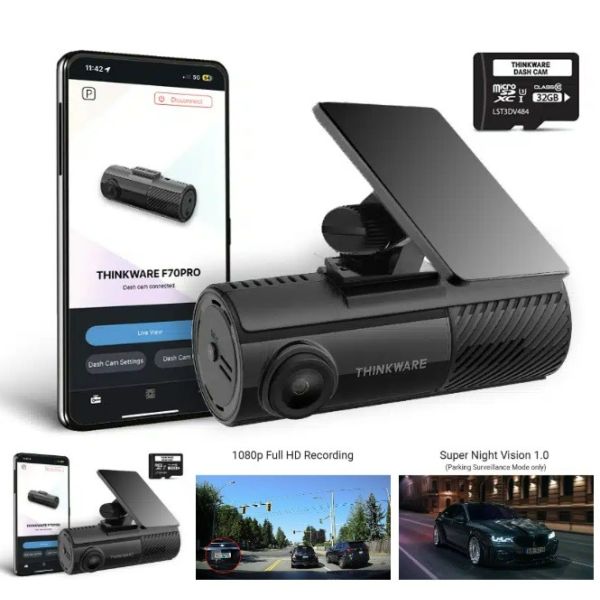

Another compact power of THINKWARE with a small price
The F70 has a discreet and compact design youāve come to love, coupled with an all-new image sensor for improved recordings in low light conditions, and the latest Energy Saving Mode for increased Parking Surveillance duration.
Features
– Full HD 1080P
– Front Vehicle Departure Warning
– Energy Saving Parking Recording
– 140Ā° Wide Angle
– Safety Camera Alert
– Advanced Video Clear Technology
– G-Sensor Incident Detection
– Format Free 2.0
– Integrated Thermal Protection
– PC Viewer (Windows & Mac OS)
IMAGEĀ
HIGH DEFINITION VIDEO QUALITYCMOS
Image Sensors allow constant Full 1080p HD resolution recording during both daytime and nighttime along with a 140-degree wide angle lens view. This will minimize blind spots to assure recording of all events without fail.
WIDE ANGLE VIEW
Front View Camera ā 140Āŗ
Uncompromised video coverage with the wide viewing angles, so you never miss a moment.
Uncompromised video coverage with the wide viewing angles, so you never miss a moment.
WIDE DYNAMIC RANGE
When you are driving under bright sunlight, coming out of a tunnel, or getting under the shadow of a tall building etc, a sudden change in frontal light exposure levels can result in excessively bright or dark recordings.The WDR function eliminates excessively bright spots on the recording to correct its color balance in order to ensure a clear image:Ā HOW IT WOKS
NIGHTTIME PICTURE QUALITY CORRECTION
Images from the videos recorded during nighttime driving on dark streets are generally difficult to make out. The enhancement Sensors of THINKWARE DASH CAMs come with a standard function of brightness and color control as well as noise cancellation.
AUTOMATIC EXPOSURE
A sudden rise of light exposure caused by strong sunlight or headlight beams of oncoming vehicle may cause difficulties to assess the situation. Also, lack of lighting in a dark tunnel or night driving may pose the same problem. The automatic light exposure function controls the level of light exposure to maintain vivid and clear video recordings in all circumstances.
SAFETY
FRONT VEHICLE DEPARTURE WARNING (FVDW)
When your car is stopped at an intersection or in traffic, the intelligent guidance system informs you that the vehicle in front has started to move, preventing a delayed response just in case you stop looking ahead:Ā HOW IT WORKS
SAFETY CAMERA ALERT*
The Safety Camera Alert function of THINKWARE DASH CAM actively alerts the driver of any photo enforcement locations on the route while still recording videos. THINKWARE Dash Cam provides active warning for these 5 types of road safety cameras:Ā HOW IT WORKS
Red Light:Ā warning system for the red light. If there is light traffic ahead, camera will inform you.
Speed camera:Ā warning system for speed & red light cameras in 400 & 200 meters. It also tell you the maximum speed of the specificĀ road.
Average speed:Ā warning system for entering average speed zone (trajectory control).
Mobile zone:Ā the camera let you know areas which are used more often for mobile speed checks
*Optional GPS antenna required.
RECORDING MODES
CONTINUOUS RECORDING MODE
This mode is activated automatically when you start the engine. Recorded videos are saved in one-minute segments with an auto-looping mechanism.
EVENT RECORDING MODE
The Active Impact Monitoring System will automatically store the video data ten seconds prior to and after a collision registered by the 3-axis G-Sensor.
MANUAL RECORDING MODE
Similar to a video camera, you can use the Manual Recording Mode to capture events that occur in front of your vehicle whether or not it is in motion.
ENERGY SAVING & PARKING RECORDING MODE
Energy saving mode will reduce power consumption by 1/3 less and gives 3x longer video recording than normal parking mode. When you are away for a vacation or leaving your car for quite some time, energy saving parking recording is a recommended solution. When in use, the device will go to sleep and soon after an impact has been detection by built-in G-senor, it will wake up within a second and start recording for next 20 seconds of period.
PARKING SURVEILLANCE MODE
Parking Surveillance mode is automatically activated when you turn off the ignition, and captures footage when a motion or impact is detected so you have video evidence of mishaps like hit-and-runs while youāre away from your vehicle.
IMPACT DETECTION
Monitor any impact to the vehicle while it is parked to catch any hit-and-run driver in the act while you are away.
MOTION DETECTION
Monitor and capture any motion around the vehicle for potential vandalism attempts.
VIEWER
PC/MAC VIEWER
This mode is activated automatically when you start the engine. Recorded videos are saved in one-minute segments with an auto-looping mechanism:Ā HOW IT WOKS
APP
The F70 dashcam does not support the viewer via APP.
OTHER FUNCTIONS
FORMAT FREE TECHNOLOGY
F70 utilizes the FAT (File Allocation Table) system. This allows THINKWAREās proprietary Format Free Technology to eliminate the need for periodical manual formatting of recorded video files on the microSD memory card. It also helps extend the life of your memory card. You can view recorded video files on any PC without having to worry about converting files. THINKWARE DASH CAM F70 saves the hassle of manually clearing memory space.
COMPREHENSIVE DRIVING INFORMATION WITH GPS
With the optional GPS Tracker, the THINKWARE DASH CAM F70 can record the vehicle’s driving speed and provide its precise location and routes identification on the map. The GPS Tracker helps you to accurately assess the details of the surrounding area by providing you with the vehicle speed and the time of a collision, and the severity of impact. The video recording feature not only stores driving footages in case of an event, but it can also be used to track your holiday travel routes.
HIGH-TEMPERATURE PROTECTION SYSTEM
The specially designed heat discharge construction and the built-in thermal sensor of the F70 protect the device and its data against intense heat by automatically turning it off to prevent overheating:Ā HOW IT WORKS
FAIL-SAFE RECORDING
In the event that the power gets disconnected after an accident, the fail-safe recording uses the Super Capacitor for backup power to ensure safe storage of any recording in progress ā so you can be assured that your valuable data will be securely stored under any circumstances.
